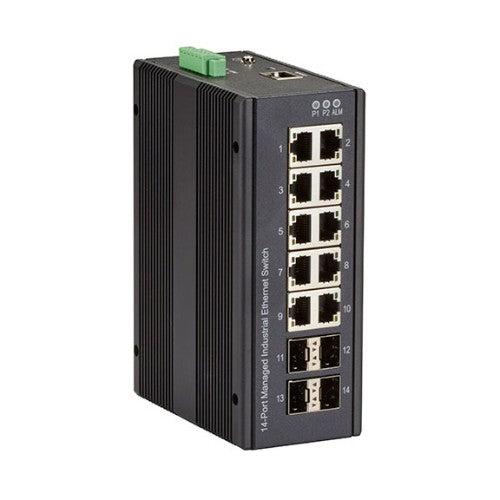

Black Box LIG1014A network switch Managed Gigabit Ethernet (10/100/1000)
  • Black Box LIG1014A network switch Managed Gigabit Ethernet (10/100/1000)
  • Black Box LIG1014A network switch Managed Gigabit Ethernet (10/100/1000)
  • Black Box LIG1014A network switch Managed Gigabit Ethernet (10/100/1000)
Black Box LIG1014A network switch Managed Gigabit Ethernet (10/100/1000)
Black Box

Black Box LIG1014A network switch Managed Gigabit Ethernet (10/100/1000)

Part number: LIG1014A
$746.34 $975.50
Save $229.16
23% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

Gigabit Managed Ethernet Switch INDRy II L

Key Features

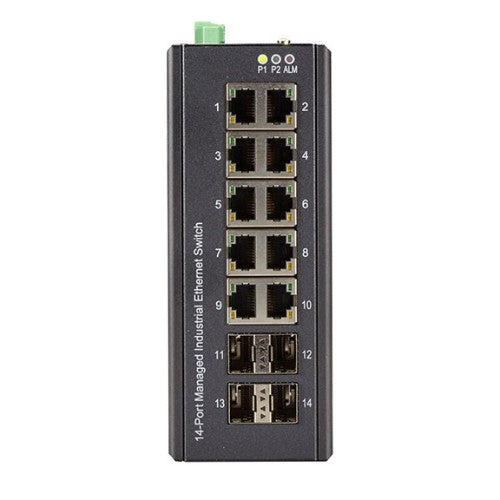

  • Provides ten 10-/100-/1000M copper ports plus four multirate SFP-slots.
  • Fully managed via SNMP, Telnet, HTTPS, and CLI.
  • L2 wire speed switching.
  • 9K jumbo frames.
  • 8K MAC forwarding addresses.
  • High redundancy with network redundant LACP and Spanning Tree (STP/RSTP/MSTP).
  • Reliable with a link loss recovery < 20 ms.
  • State-of-the-art VLAN capabilities and VLAN mirroring.
  • Support 802.1p and TOS/DS Quality of Service with four queues per port.
  • Efficient bandwidth utilization with IGMP v1/v2 to multicast video over the network.

Description

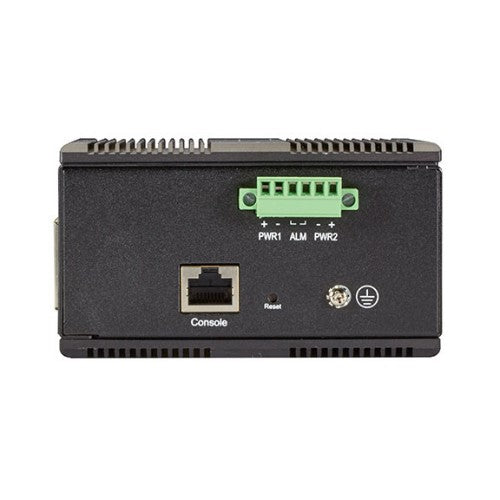

- Economical switch delivers features normally found in more expensive switches. - SFP ports enable single-mode or multimode Gigabit fiber uplinks over long distances. - 10-/100-/1000-Mbps ports are autosensing for speed and duplex. - Rated for extreme temperatures of -40 to +75° C. - Dual DC power inputs for redundancy. - IP30-rated housing is also rated for shock and vibration protection. - Manage through a Web interface, SNMP, or command-line interface (CLI). Check - Features bandwidth rate control, traffic prioritization, and quality of service. - DIN rail or wall mount. Multiple ports for flexibility. This switch has ten 10/10/1000-Mbps RJ-45 copper ports and four RJ-45/SFP copper/fiber Gigabit combo ports for uplinks. It offers full wire-speed forwarding rates, autonegotiates for network speeds, and Auto-MDI/MDI-X, eliminating the need for crossover cables. Maximize uptime. Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. And you'll eliminate the need to send IT technicians on site—thus lowering costs. The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications. The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security. Fast failovers. The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol. It offers a 20 millisecond or less failover. Extreme applications. - Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for: - Security and surveillance, particularly to backhaul IP security camera data. - Military applications, especially in ships and other vehicles. - Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment. - Oil and gas fields or remote equipment monitoring and control. - Building automation for controlling HVAC and lighting systems. Installation options. The switch features redundant power inputs and includes a DIN-rail mount. The panel and rack mounting kits and power supplies (MDR-40-12, MDR-40-24, MDR-40-48, and SDR-240-48) are sold separately. The switch also includes a serial cable (RJ-45/DB9) for the console connection.

Specifications

Management features
Multicast support Yes
Switch type Managed
Web-based management Yes
System event log Yes
Quality of Service (QoS) support Yes
Network
IGMP snooping Yes
Networking standards IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x
Full duplex Yes
VLAN support Yes
Spanning tree protocol Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
10G support No
Auto-negotiation Yes
Virtual LAN features
VLAN support Yes
Data transmission
Number of multicast groups filtered 255
Jumbo frames 9000
Packet buffer memory 0.5 MB
MAC address table 8000 entries
Store-and-forward Yes
Number of queues 8
Jumbo frames support Yes
Optical fiber
Fiber optic connector SFP
Performance
Packet buffer memory 0.5 MB
Auto-negotiation Yes
Harmonized System (HS) code 85176990
Technical details
Product colour Black
Ports & interfaces
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports quantity 10
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Fiber optic connector SFP
Console port RS-232
Security
Authentication MAC-based authentication
Security algorithms 802.1x RADIUS, HTTPS, SNMP, SSH
IGMP snooping Yes
DHCP features DHCP server, DHCP client
Multicast features
Number of multicast groups filtered 255
Multicast support Yes
Certificates
Certification UL508/CSA C22, EN61010-1, CE, FCC 15, CISPR22 (EN55022) A, IEC60068-2-6, -27, -32, IEC61000-4-2, -3, -4, -5, -6, RoHS, WEEE
Memory
Packet buffer memory 0.5 MB
Design
Wall mountable Yes
International Protection (IP) code IP30
DIN rail mounting Yes
Product colour Black
LED indicators LAN, Power
Certification UL508/CSA C22, EN61010-1, CE, FCC 15, CISPR22 (EN55022) A, IEC60068-2-6, -27, -32, IEC61000-4-2, -3, -4, -5, -6, RoHS, WEEE
Indication
LED indicators LAN, Power
Power
Power consumption (max) 11 W
Input voltage 12 - 58 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 75 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 2.36" (60 mm)
Depth 4.29" (109 mm)
Height 6.06" (154 mm)
Weight 2.43 lbs (1.1 kg)
Other features
Input voltage 12 - 58 V
