2xUSB, 100m, 100x76x26mm, 1kg
Install your USB devices anywhere! Combine the USB Ultimate Extender over UTP with additional USB hubs to power up to 30 USB devices. It supports all major operating systems including Windows, Mac OS, and Linux. It's truly plug-and-play, ready to operate right out of the box. No new driver installation is required. The USB Ultimate Extender works with all USB device types: control, interrupt, bulk, and isochronous at up to 480 Mbps. It’s ideal for a wide variety of USB devices, including printers, scanners, hard drives, audio devices, touch screens, and Web cams. The 2-port version IC402A-R2 with remote power delivers power to the remote hub over CAT5 cable, simplifying installation and eliminating the need for AC power close to the remote unit. The remote unit provides 750 mA to each USB port. The 4-Port model IC400A-R2 features an AC power adapter at the remote unit provides 1A to each USB port, up to 600mA when all four ports being used. The local unit doesn’t require power for normal operation. The USB Ultimate Extender over UTP is ideal for variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more. Use it for any or all of the following applications:
- Industrial control
- KVM extension
- Digital signage
- Remote desktop USB connections
- Security: Web camera, access control
- Medical Device connectivity
- USB Web device sharing: printing, scanning, storage
Black Box

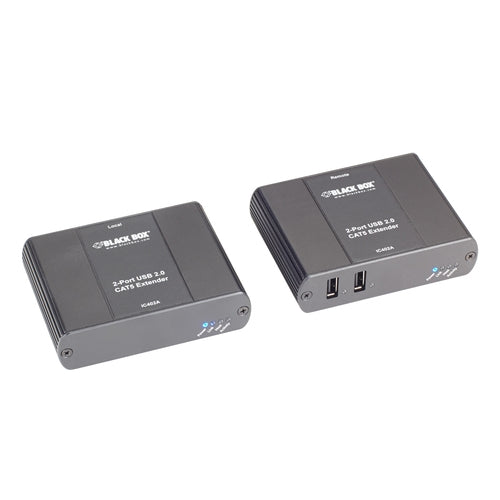

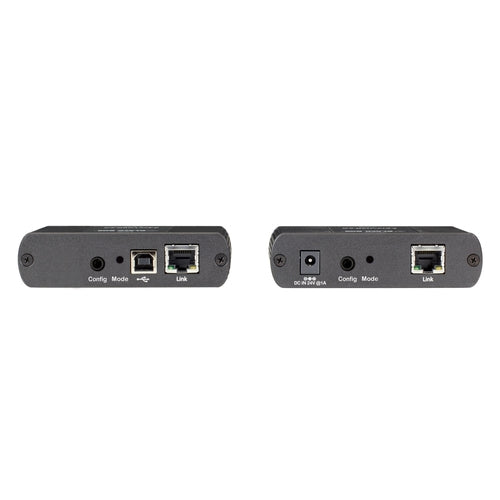

Black Box IC402A-R2 network extender Network transmitter & receiver
Part number:
IC402A-R2
$502.29
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Extends USB 2.0 and USB 1.1 up to 100 meters over CATx UTP cable
- Works with Windows, Mac OS, and Linux O/S
- No new driver installation is required
- True plug-and-play capabilities
- Ideal for variety of USB devices
- Mass Storage Acceleration for USB 2.0 Device bulk transfers
- Now supports Genesys hubs
Description
Get USB connectivity anywhere.Install your USB devices anywhere! Combine the USB Ultimate Extender over UTP with additional USB hubs to power up to 30 USB devices. It supports all major operating systems including Windows, Mac OS, and Linux. It's truly plug-and-play, ready to operate right out of the box. No new driver installation is required. The USB Ultimate Extender works with all USB device types: control, interrupt, bulk, and isochronous at up to 480 Mbps. It’s ideal for a wide variety of USB devices, including printers, scanners, hard drives, audio devices, touch screens, and Web cams. The 2-port version IC402A-R2 with remote power delivers power to the remote hub over CAT5 cable, simplifying installation and eliminating the need for AC power close to the remote unit. The remote unit provides 750 mA to each USB port. The 4-Port model IC400A-R2 features an AC power adapter at the remote unit provides 1A to each USB port, up to 600mA when all four ports being used. The local unit doesn’t require power for normal operation. The USB Ultimate Extender over UTP is ideal for variety of USB devices, from printers, scanners, hard drives, and audio devices, touch screens, Web cams, and more. Use it for any or all of the following applications:
- Industrial control
- KVM extension
- Digital signage
- Remote desktop USB connections
- Security: Web camera, access control
- Medical Device connectivity
- USB Web device sharing: printing, scanning, storage
Specifications
| Performance | |
|---|---|
| Plug and Play | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 3937" (100 m) |
| Ports & interfaces | |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| LED indicators | Yes |
| Certification | FCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Transmitter width | 3.94" (10 cm) |
| Transmitter depth | 2.99" (7.6 cm) |
| Transmitter height | 1.02" (2.6 cm) |
| Receiver width | 3.94" (10 cm) |
| Receiver depth | 2.99" (7.6 cm) |
| Receiver height | 1.02" (2.6 cm) |
| Weight | 2.2 lbs (1 kg) |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB |
| Technical details | |
| Plug and Play | Yes |
| LED indicators | Yes |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 3937" (100 m) |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC (Class B), IC (Class B), CE (Class B); ESD Rating: EMC EN-61000-4-2:2001 4kV Contact, 8kV Air |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
