8x 10/100/1000BASE-T RJ-45, 2x SFP, 1U, 20 Gbps, 14.88 Mbps, VLAN, QoS, 280 x 126 x 44 mm
Efficient and Resilient
For mission critical environments, the DGS-1210/ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). Spanning Tree allows the switch to be configured with a redundant backup bridge path, so transmission and reception of packets can be guaranteed in failover situations. The switches also support 802.3ad link aggregation, which enables multiple ports to be grouped to form a single virtual port, increasing bandwidth and redundancy for higher availability. These models feature 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Packet classification is based on ToS, DSCP, MAC, IPv4, VLAN ID, TCP/UDP port number, protocol type, or user-defined packet content for flexible configuration for specific multimedia applications such as VoIP or IPTV.
Security & Authentication
DGS-1210/ME Series Metro Ethernet Switches support 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control over the network. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and also to define the port number to enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding by automatically trapping packets and logging events in these situations. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
Management Capabilities
A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration. This enables switches to load their configuration from a TFTP server once they have been assigned an IP address, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics, which can be used to troubleshoot cable length and functionality problems remotely, resulting in lower management overheads.
Traffic & Bandwidth Control
Integrated bandwidth control allows network administrators to define the throughput levels for each port to manage bandwidth. It provides a minimum granularity of 64 Kbps ingress control for port and flow-based bandwidth control. The DGS-1210/ME Series also supports traffic control, which optimises performance by dropping packets beyond the threshold, and port mirroring helps administrators facilitate traffic diagnostics and track switch performance. The DGS-1210/ME Series also provides IGMP snooping with IGMP authentication to prune multicast traffic and to optimise available bandwidth.
Multicast Applications
The DGS-1210/ME Series Metro Ethernet Switches feature a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, fast leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210/ME Series is ready and capable of handling growing IPTV applications. Host-based IGMP/MLD snooping allows for multiple multicast subscribers per physical interface, and ISM VLAN sends multicast streams in a multicast VLAN, saving bandwidth on the backbone network. ISM VLAN profiles allow users to bind/replace the predefined multicast registration information to subscriber ports quickly and easily.
D-Link

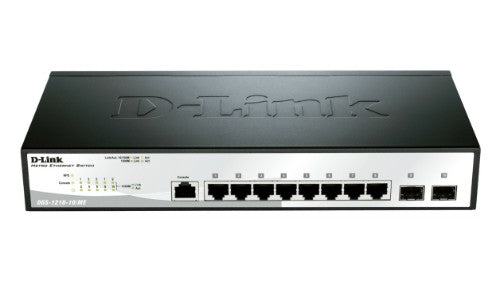

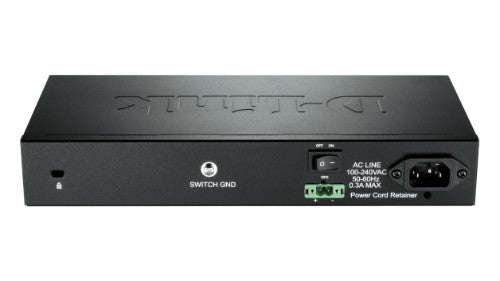

D-Link DGS-1210-10/ME network switch L2 Gigabit Ethernet (10/100/1000) 1U Black, Gray
Part number:
DGS-1210-10/ME
Sale price
$166.59
Regular price
$224.99
Save
$58.40
26%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The DGS-1210/ME Series Metro Ethernet Switches are a range of switches ideally suited for Metro Ethernet applications. They feature 10/100/1000BASE-T RJ-45 ports and SFP ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, extensive suite of security and management tools make the DGS-1210/ME Series Metro Ethernet Switches suited for Metro Ethernet applications.Efficient and Resilient
For mission critical environments, the DGS-1210/ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). Spanning Tree allows the switch to be configured with a redundant backup bridge path, so transmission and reception of packets can be guaranteed in failover situations. The switches also support 802.3ad link aggregation, which enables multiple ports to be grouped to form a single virtual port, increasing bandwidth and redundancy for higher availability. These models feature 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Packet classification is based on ToS, DSCP, MAC, IPv4, VLAN ID, TCP/UDP port number, protocol type, or user-defined packet content for flexible configuration for specific multimedia applications such as VoIP or IPTV.
Security & Authentication
DGS-1210/ME Series Metro Ethernet Switches support 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control over the network. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and also to define the port number to enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding by automatically trapping packets and logging events in these situations. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
Management Capabilities
A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration. This enables switches to load their configuration from a TFTP server once they have been assigned an IP address, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics, which can be used to troubleshoot cable length and functionality problems remotely, resulting in lower management overheads.
Traffic & Bandwidth Control
Integrated bandwidth control allows network administrators to define the throughput levels for each port to manage bandwidth. It provides a minimum granularity of 64 Kbps ingress control for port and flow-based bandwidth control. The DGS-1210/ME Series also supports traffic control, which optimises performance by dropping packets beyond the threshold, and port mirroring helps administrators facilitate traffic diagnostics and track switch performance. The DGS-1210/ME Series also provides IGMP snooping with IGMP authentication to prune multicast traffic and to optimise available bandwidth.
Multicast Applications
The DGS-1210/ME Series Metro Ethernet Switches feature a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, fast leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210/ME Series is ready and capable of handling growing IPTV applications. Host-based IGMP/MLD snooping allows for multiple multicast subscribers per physical interface, and ISM VLAN sends multicast streams in a multicast VLAN, saving bandwidth on the backbone network. ISM VLAN profiles allow users to bind/replace the predefined multicast registration information to subscriber ports quickly and easily.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic classification | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 1213, RFC 1493, RFC 1907, RFC 1757, RFC 2819, RFC 2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674,4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925 |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Cable types supported | Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Data transmission | |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 4094 |
| Throughput | 14.88 Mpps |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Number of queues | 8 |
| Optical fiber | |
| Fiber optic connector | SFP |
| Fiber ethernet cabling technology | 1000BASE-X |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Auto-negotiation | Yes |
| Memory type | DDR3-SDRAM |
| Mean time between failures (MTBF) | 309072 h |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Black, Gray |
| Mean time between failures (MTBF) | 309072 h |
| Rack mounting | Yes |
| Power over Ethernet (PoE) | |
| Power protection features | Over voltage |
| Power over Ethernet (PoE) | No |
| Security | |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSH |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| Certificates | |
| Safety | CE LVD, UL, CB |
| Electromagnetic compatibility | FCC A, CE A, VCCI |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Design | |
| Safety | CE LVD, UL, CB |
| Form factor | 1U |
| Product colour | Black, Gray |
| LED indicators | Activity, Link, Power, Speed |
| Electromagnetic compatibility | FCC A, CE A, VCCI |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Activity, Link, Power, Speed |
| Power | |
| Power consumption (max) | 13.59 W |
| Power protection features | Over voltage |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 46.35 BTU/h |
| Weight & dimensions | |
| Width | 11" (280 mm) |
| Depth | 4.96" (126 mm) |
| Height | 1.73" (44 mm) |
