S16 - 16-Port 10/100 Desktop Switch, 4K MAC, IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x, DC 9V/0.6A, RoHS

Description

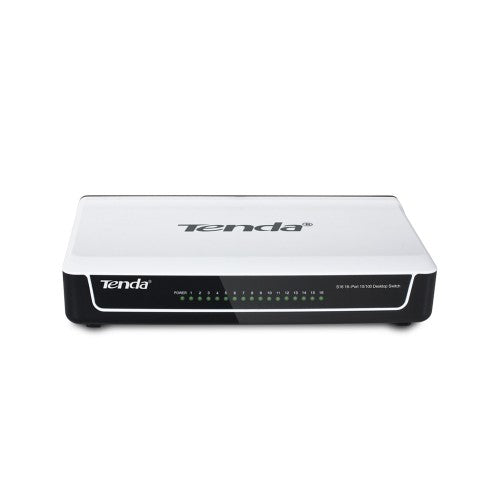

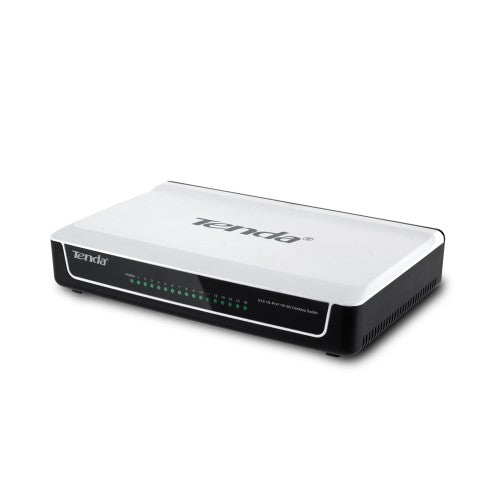

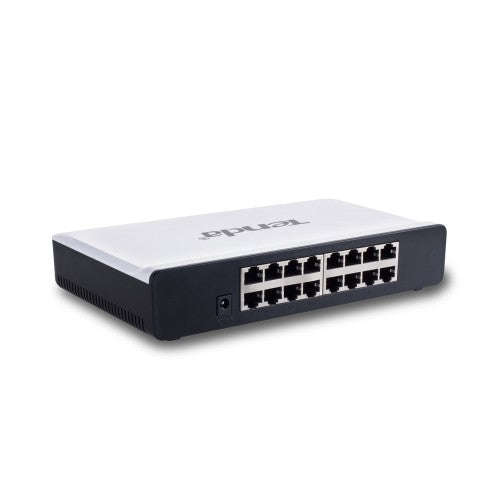

The Tenda S16 16-Port 10/100 Switch provides simple and ideal solution to expand network for large home, building, leased or rented house and SMB. Connect this 16-port switch to a router and add up to fifteen additional computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy plastic case with compact size, it is ideal for desktop installation.

The switch is solidly built in small size that is easy to position on any flat surface with limited space.

Housed in a sleek and stylish case, the switch blends in nicely with SOHO and SMB.

The switch is built with reduced heat and a longer product life without sacrificing performance or functionality in mind. With superb heat dissipation capability and manufactured with fire proof materials, the switch maintains optimum performance even in extreme environment.

Each port on the switch can automatically figure out if the link needs a straight-through or cross-over connection, and make the right choice, eliminating the need for toggle switches or special crossover cables. Plus, the switch adopts the store-and-forwarding forwarding mode and auto-learns/-updates MAC addresses to improve your network performance.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
MAC address table	4000 entries
Switching capacity	3.2 Gbit/s
Security
Access Control List (ACL)	Yes
Design
Product colour	Black, White
Stackable	No
LED indicators	Activity, Link, Power
Housing material	Plastic
Rack mounting	No
Number of fans	2 fan(s)
Certification	FCC, CE, RoHS, WEEE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Power requirements	DC 9V/0.6A
Power LED	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	5.31" (135 mm)
Depth	8.58" (218 mm)
Height	1.64" (41.6 mm)
Packaging content
Manual	Yes
Performance
Stackable	No
Harmonized System (HS) code	85176990
Power
Power connector	DC-in jack
Technical details
Product colour	Black, White
Stackable	No
Housing material	Plastic
Rack mounting	No
Certificates
Certification	FCC, CE, RoHS, WEEE
Indication
Power LED	Yes
LED indicators	Activity, Link, Power
Packaging data
Manual	Yes
Logistics data
Harmonized System (HS) code	85176990
