2794L Open Frame Touchscreen (Rev B), 27" LCD (LED) 1920x1080, SAW (IntelliTouch Surface Acoustic Wave) Single Touch, HDMI, VGA, Display Port
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® Plus dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

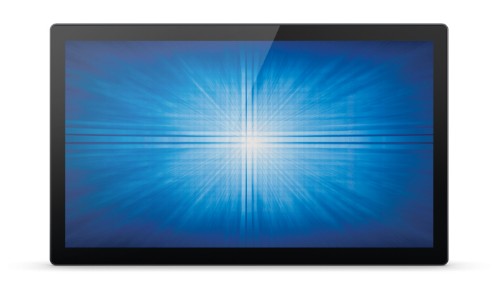

Elo Touch Solutions 2794L 27" LCD/TFT 270 cd/m² Full HD Black Touchscreen
Part number:
E329262
Sale price
$940.85
Regular price
$1,254.89
Save
$314.04
25%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® Plus dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 16.78 million colors |
| Touchscreen | Yes |
| Display technology | LCD/TFT |
| Display diagonal | 27" |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 270 cd/m² |
| HD type | Full HD |
| Response time | 12 ms |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 30 - 82 kHz |
| Maximum refresh rate | 60 Hz |
| Touchscreen technology | Surface acoustic wave |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Design | |
| Product colour | Black |
| Panel mounting interface | 200 x 100 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 27 W |
| Packaging data | |
| Package width | 30.8" (782 mm) |
| Package depth | 7.87" (200 mm) |
| Package height | 20.9" (530 mm) |
| Package weight | 22.5 lbs (10.2 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | DC |
| Weight (without stand) | 16.1 lbs (7.3 kg) |
| Full HD | Yes |
| Display viewable area (HxV) | 23.5 x 13.2" (597.6 x 336.1 mm) |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | DC |
| Weight (without stand) | 16.1 lbs (7.3 kg) |
| Display viewable area (HxV) | 23.5 x 13.2" (597.6 x 336.1 mm) |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD/TFT |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 82 kHz |
| Built-in camera | No |
| Backlight type | LED |
| Aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
