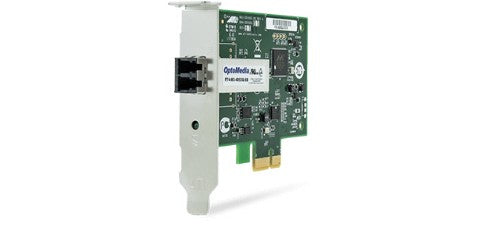

Allied Telesis 2914SX/LC, Internal, Wired, PCI Express, Fiber, 1000 Mbit/s
Allied Telesis
Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s
Part number:
AT-2914SX/LC-901
Sale price
$297.79
Regular price
$500.00
Save
$202.21
40%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Jumbo frames up to 9.6KB
- Smart Load Balancing (SLB) and failover
- Link aggregation (IEEE 802.3ad)
- Generic trunking (FEC/GEC) / IEEE 802.3ad-draft static
- UEFI network boot
- Low-profile and standard height brackets included
Description
Allied Telesis 2914SX/LC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 1000 Mbit/sSpecifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Fiber ports quantity | 2 |
| Fiber optic connector | LC |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Antenna | |
| Quality of Service (QoS) support | Yes |
| Technical details | |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Network | |
| Load balancing system | Yes |
| Jumbo frames | 9600 |
| Quality of Service (QoS) support | Yes |
| Security algorithms | SNMP |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Design | |
| Certification | UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI |
| Internal | Yes |
| LED indicators | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7 |
| Linux operating systems supported | Yes |
| Power | |
| Power consumption (typical) | 1.5 W |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
| Windows operating systems supported | Windows 10, Windows 7 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 3.46" (88 mm) |
| Height | 2.72" (69 mm) |
| Weight | 2.4 oz (68 g) |
| Security | |
| Security algorithms | SNMP |
| Performance | |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
| Security algorithms | SNMP |
| Wake-on-LAN ready | Yes |
| Windows operating systems supported | Windows 10, Windows 7 |
| Linux operating systems supported | Yes |
| Auto-negotiation | Yes |
| Certificates | |
| Certification | UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Jumbo frames | 9600 |
| Flow control support | Yes |
| Harmonized System (HS) code | 85176990 |
