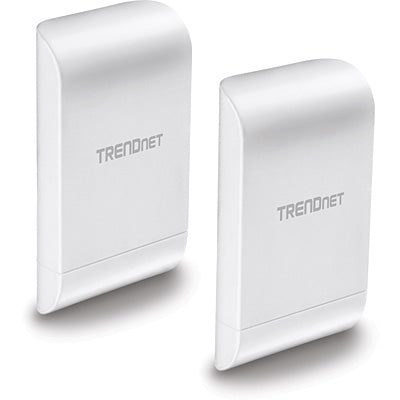

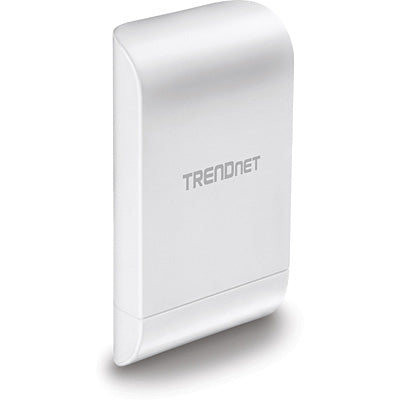

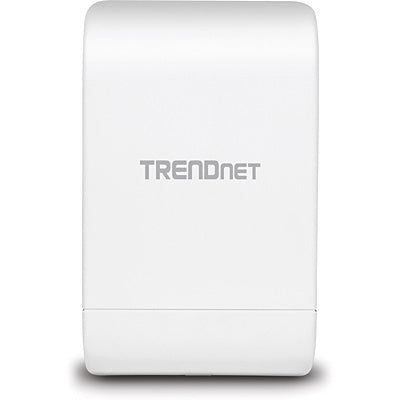

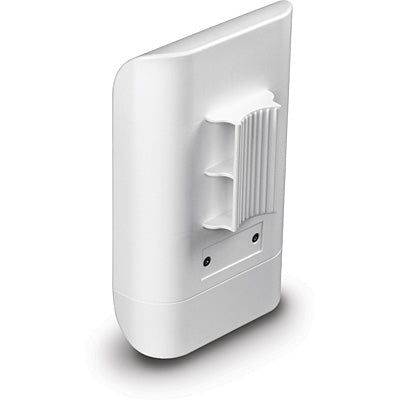

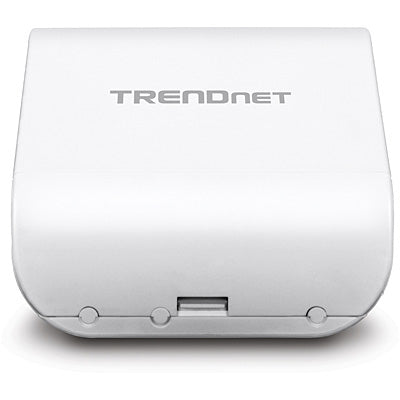

10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit
Preconfigured Point-to-Point Bridge
Reduce installation and setup time with this preconfigured and pre-encrypted long range wireless bridge kit

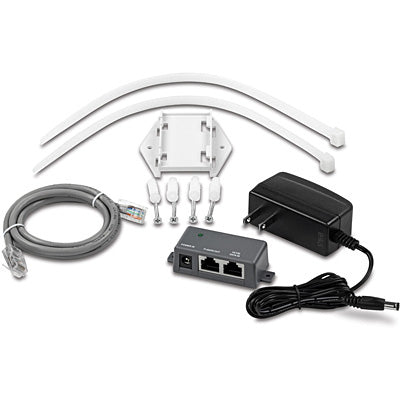

PoE Power Adapter
Included power adapter provides power and data over a single Ethernet cable with a maximum distance of 60 m (197 ft.)
Outdoor Ready
Durable enclosure with an IPX6 outdoor weather rating
Trendnet
Trendnet TEW-740APBO2K wireless router Fast Ethernet Single-band (2.4 GHz) White
Part number:
TEW-740APBO2K
Sale price
$183.08
Regular price
$221.44
Save
$38.36
17%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Wireless N300 point-to-point networking (2.4 GHz)
- Includes two preconfigured wireless N access points
- IP56 outdoor weather rated housing
- Built-in 10 dBi directional antenna
- Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
- Proprietary PoE power adapters included

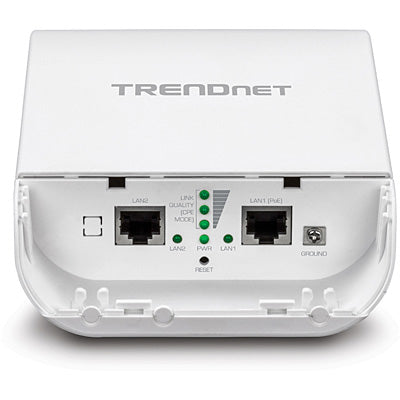

- 1 x 10/100Mbps PoE-in port, and 1 x 10/100Mbps port
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s 10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-740APBO2K, provides Wireless N300 point-to-point connectivity. This preconfigured kit provides installers the simplest way to create a long distance wireless point-to-point bridge. Conveniently link two locations together with wireless N speed and performance.Preconfigured Point-to-Point Bridge
Reduce installation and setup time with this preconfigured and pre-encrypted long range wireless bridge kit
PoE Power Adapter
Included power adapter provides power and data over a single Ethernet cable with a maximum distance of 60 m (197 ft.)
Outdoor Ready
Durable enclosure with an IPX6 outdoor weather rating
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Performance | |
| Firmware upgradeable | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 100 Mbit/s |
| Wi-Fi band | Single-band (2.4 GHz) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Network | |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Ports & interfaces | |
| USB port | No |
| RJ-11 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
| System event log | Yes |
| MAC address filtering | Yes |
| Firewall | Yes |
| Filtering | Yes |
| Protocols | |
| DHCP client | Yes |
| Design | |
| Product type | Tabletop router |
| Product colour | White |
| Indication light | Yes |
| Certificates | |
| Certification | CE FCC |
| Antenna | |
| Antenna design | Internal |
| Antenna gain level (max) | 10 dBi |
| Features | |
| Firmware upgradeable | Yes |
| Certification | CE FCC |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power source type | PoE |
| Output voltage | 12 V |
| Output current | 1 A |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 4.65" (118 mm) |
| Weight | 11.3 oz (320 g) |
| Height | 7.68" (195 mm) |
| Depth | 2.4" (61 mm) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
