10-Port Hardened Industrial Gigabit DIN-Rail Switch
Gigabit Speeds
Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Tolerance
Features dual redundant power inputs with output alarm relay.
Design
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.
Trendnet
Trendnet TI-G102 network switch Gigabit Ethernet (10/100/1000) Black
Part number:
TI-G102
Sale price
$286.06
Regular price
$347.12
Save
$61.06
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 x Gigabit ports
- 2 x Gigabit RJ-45 / SFP shared ports
- 20Gbps switching capacity
- Hardened IP30 rated metal switch

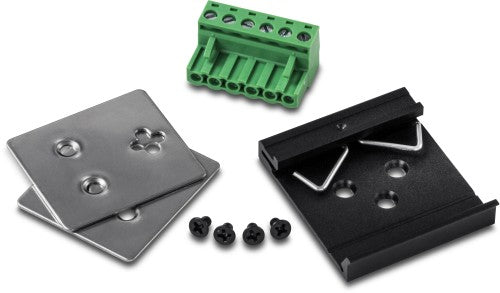

- Includes DIN-rail and wall mounts
- Operating temperature range of -40° – 75°C (-40° – 167°F)

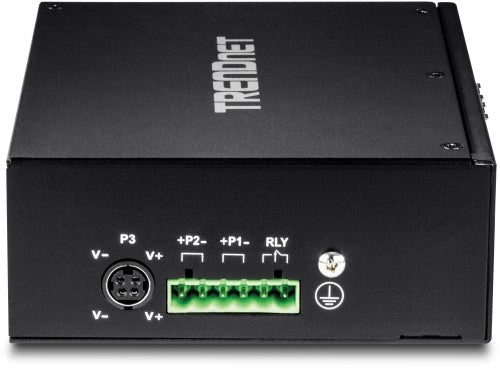

- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- NDAA / TAA compliant
Description
TRENDnet’s 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.Gigabit Speeds
Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Tolerance
Features dual redundant power inputs with output alarm relay.
Design
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.
Specifications
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 14.8 Mpps |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE, FCC |
| Performance | |
| Buffer size | 2048 KB |
| Mean time between failures (MTBF) | 510400 h |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 5.76 W |
| Redundant power supply (RPS) support | Yes |
| Input voltage | 12/56 V |
| DC input voltage | 12 - 56 V |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 6.1" (155 mm) |
| Depth | 4.72" (120 mm) |
| Height | 1.89" (48 mm) |
| Weight | 14.6 oz (415 g) |
| Packaging data | |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 510400 h |
| Housing material | Metal |
| Rack mounting | No |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Input voltage | 12/56 V |
| Packaging content | |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
