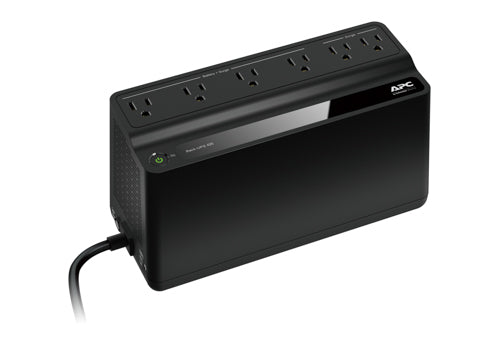

APC BE425M-LM, Standby (Offline), 0.425 kVA, 255 W, Square, 88 V, 139 V

Description

APC BE425M-LM. UPS topology: Standby (Offline), Output power capacity: 0.425 kVA, Output power: 255 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 47 VAh, Battery life (max): 5 year(s). Form factor: Compact, Product color: Black, Cable length: 59.1" (1.5 m). Width: 9.96" (253 mm), Depth: 4.13" (105 mm), Height: 5.51" (140 mm)

Specifications

Power
Output frequency regulation	50 - 60 Hz
Output power	255 W
Input operation voltage (min)	88 V
Input operation voltage (max)	139 V
Output operation voltage (max)	120 V
Surge energy rating	180 J
Maximum current	5 A
Output power capacity	0.425 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	59.1" (1.5 m)
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
Performance
Audible alarm modes	Low battery alarm
UPS topology	Standby (Offline)
Waveform	Square
Number of output phases	1
LED indicators	Status
Noise level	40 dB
Audible alarm(s)	Yes
Features
Audible alarm modes	Low battery alarm
UPS topology	Standby (Offline)
Waveform	Square
Output frequency regulation	50 - 60 Hz
Number of output phases	1
Output power	255 W
Input operation voltage (min)	88 V
Input operation voltage (max)	139 V
Output operation voltage (max)	120 V
Surge energy rating	180 J
Maximum current	5 A
Noise level	40 dB
Audible alarm(s)	Yes
Output power capacity	0.425 kVA
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Battery capacity	47 VAh
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Design
Form factor	Compact
LED indicators	Status
Product colour	Black
Cable length	59.1" (1.5 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificates	RoHS
Weight & dimensions
Package width	12.4" (315 mm)
Package depth	5.51" (140 mm)
Package height	8.66" (220 mm)
Weight	5.73 lbs (2.6 kg)
Width	9.96" (253 mm)
Package weight	6.61 lbs (3 kg)
Height	5.51" (140 mm)
Depth	4.13" (105 mm)
Packaging data
Manual	Yes
Package width	12.4" (315 mm)
Package depth	5.51" (140 mm)
Package height	8.66" (220 mm)
Package weight	6.61 lbs (3 kg)
Logistics data
Products per master (outer) case	2 pc(s)
Products per pallet	96 pc(s)
Packaging content
Manual	Yes
