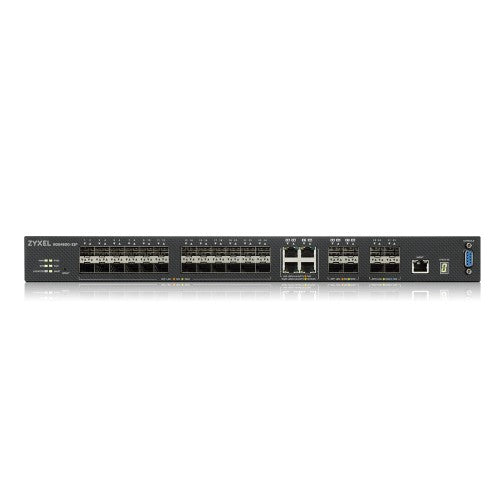

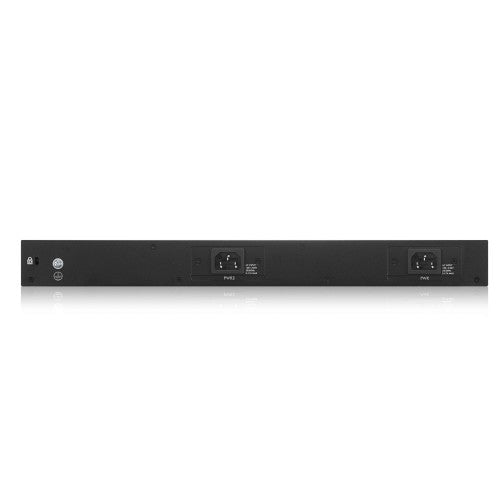

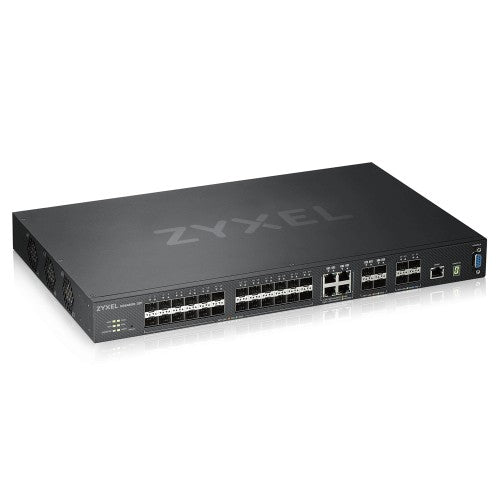

28-port GbE SFP L3 Managed Switch with 4 SFP+ Uplink

Description

Stylish Outlook

New ID design with carbon fiber look name plate delivers the modern look-and-feel in the closet.

High Availability

The XGS4600 Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements.

Stacking Capability

The XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. It also features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks.

High Resiliency

The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.

Robust Hardware

High-quality hardware design ensures stability and longevity for XGS4600 Series on your networks.

Specifications

Performance
Packet buffer memory	4 MB
Stackable	Yes
Noise level	60.3 dB
Mean time between failures (MTBF)	794270.06 h
Internal memory	1024 MB
Flash memory	64 MB
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Noise level	60.3 dB
Mean time between failures (MTBF)	794270.06 h
Rack mounting	Yes
Management features
Switch type	Managed
Web-based management	Yes
Switch layer	L3
Ports & interfaces
Installed SFP modules quantity	24
Installed SFP+ modules quantity	4
Combo SFP ports quantity	4
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
IP routing	Yes
10G support	Yes
Data transmission
Packet buffer memory	4 MB
MAC address table	32000 entries
Switching capacity	136 Gbit/s
Security
BPDU filtering/protection	Yes
SSH/SSL support	Yes
Security algorithms	SSH, SSL/TLS
MAC address filtering	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Memory
Packet buffer memory	4 MB
Internal memory	1024 MB
Flash memory	64 MB
Design
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Indication
LED indicators	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	60.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95%
Weight & dimensions
Width	17.4" (441 mm)
Depth	10.6" (270 mm)
Height	1.73" (44 mm)
Weight	9.28 lbs (4.21 kg)
Packaging data
Package width	24.3" (616 mm)
Package depth	14" (355 mm)
Package height	4.09" (104 mm)
Package weight	12.9 lbs (5.83 kg)
Cables included	AC
Packaging content
Cables included	AC
