Fast Ethernet Fiber Desktop USB-Powered Media Converter, 100TX to 100FX/LC
At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, Allied Telesis DMC Series media converters can easily fit into the palm of a hand. In addition to being compact—with a small carbon footprint—the DMC Series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC or may also be powered via the optional AC/DC adapter. This saves installation time and cabling as there are no further power requirements
Allied Telesis

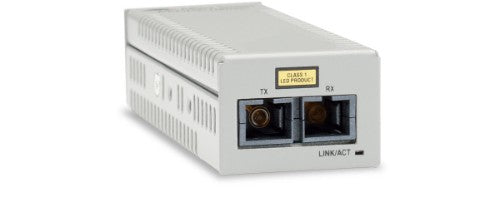

Allied Telesis AT-DMC100/LC-90 network media converter 100 Mbit/s 1310 nm Multi-mode Gray
Part number:
AT-DMC100/LC-90
Sale price
$193.91
Regular price
$328.00
Save
$134.09
41%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
OverviewAt just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, Allied Telesis DMC Series media converters can easily fit into the palm of a hand. In addition to being compact—with a small carbon footprint—the DMC Series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC or may also be powered via the optional AC/DC adapter. This saves installation time and cabling as there are no further power requirements
Specifications
| Network | |
|---|---|
| Fiber optic connector | LC |
| Data transfer rate | 100 Mbit/s |
| Auto-negotiation | Yes |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
| Fiber ethernet cabling technology | 100BASE-FX |
| Converter input interface | 100Base-TX |
| Networking standards | IEEE 802.1Q |
| Duplex system | Full, Half |
| Converter output interface | 100Base-FX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -22.5 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32 dBmW |
| Rx power (max) | -14 dBmW |
| Internal | No |
| Data transfer rate | 100 Mbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Auto-negotiation | Yes |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -22.5 dBmW |
| Tx power (max) | -14 dBmW |
| Rx power (min) | -32 dBmW |
| Rx power (max) | -14 dBmW |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| Indication | |
| LED indicators | Yes |
| Design | |
| DIN rail mounting | Yes |
| LED indicators | Yes |
| Product colour | Gray |
| Internal | No |
| Colour | |
| Product colour | Gray |
| Weight & dimensions | |
| Width | 1.25" (31.8 mm) |
| Depth | 3.6" (91.4 mm) |
| Height | 0.85" (21.6 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
