AC1750 Dual Band PoE Access Point
Trendnet

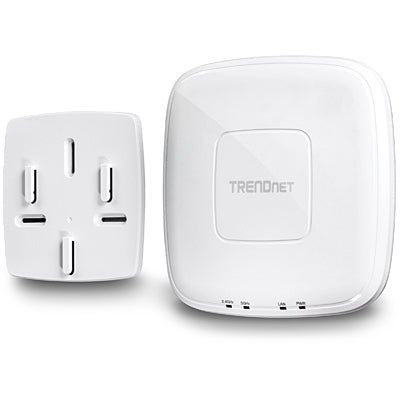

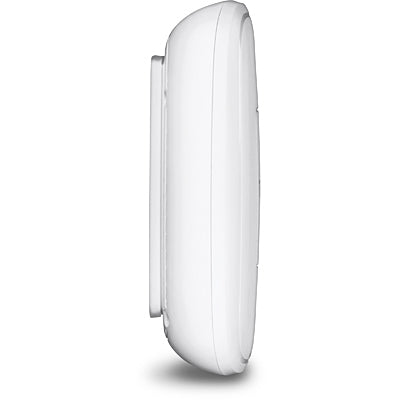

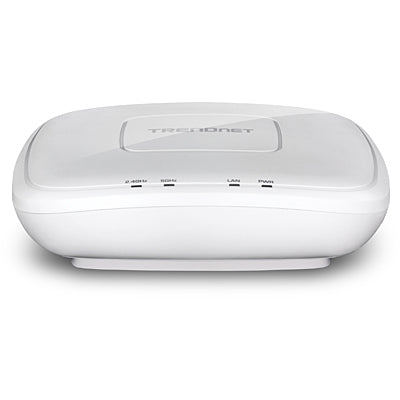

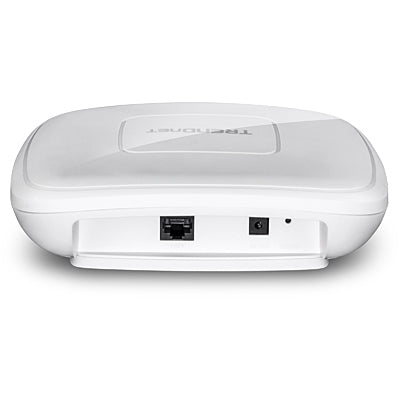

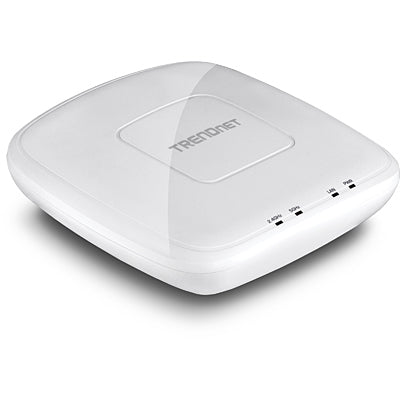

Trendnet TEW-825DAP wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
Part number:
TEW-825DAP
Sale price
$101.83
Regular price
$126.20
Save
$24.37
19%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- High performance AC1750 PoE+ access point
- AC1750: concurrent 1300 Mbps WiFi AC + 450 Mbps WiFi N bands
- Access Point, Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes
- Optional cloud management with TRENDnet Hive (Additional fee applies)
- Gigabit PoE+ LAN port
- Off-white low profile housing
- NDAA / TAA compliant (U.S. and Canada only)
Description
Equip your business with a manageable and cost-effective AC1750 wireless network with TRENDnet’s AC1750 Dual Band PoE+ Access Point, model TEW-825DAP. Broadcast concurrent 1300 Mbps WiFi AC and 450 Mbps WiFi N networks. Relieve congestion and overcrowding on the 2.4GHz band by employing band steer technology. Power the access point with the included AC adapter, or connect via PoE+ for installation flexibility. The low-profile design blends into most environments and includes a convenient ceiling / wall mounting plate.Specifications
| Data transmission | |
|---|---|
| Wi-Fi data rate (max) | 1300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1750 Mbit/s |
| Performance | |
| Operating modes | Access Point (AP),Client Bridge,Repeater,WDS Access Point (AP),WDS Bridge,WDS Station |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi data rate (max) | 1300 Mbit/s |
| Reset button | Yes |
| Frequency band | 2.412 - 2.472, 5.18 - 5.825 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | RoHS |
| Maximum data transfer rate | 1750 Mbit/s |
| Compatible operating systems | Windows 10, 8.1, 8, 7, Vista, XP |
| Wireless LAN features | |
| Frequency band | 2.412 - 2.472, 5.18 - 5.825 GHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, DSSS, OFDM, QPSK |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Features | |
| Operating modes | Access Point (AP),Client Bridge,Repeater,WDS Access Point (AP),WDS Bridge,WDS Station |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi data rate (max) | 1300 Mbit/s |
| Frequency band | 2.412 - 2.472, 5.18 - 5.825 GHz |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1750 Mbit/s |
| Compatible operating systems | Windows 10, 8.1, 8, 7, Vista, XP |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA2-RADIUS |
| MAC address filtering | Yes |
| Protocols | |
| Management protocols | SNMP v1 / v3, STP |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 12.5 W |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| Internal | No |
| LED indicators | Yes |
| Certification | RoHS |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4 dBi |
| Technical details | |
| Reset button | Yes |
| Certificates | |
| Certification | RoHS |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 7.36" (187 mm) |
| Depth | 7.36" (187 mm) |
| Weight | 14.7 oz (416 g) |
| Height | 1.81" (46 mm) |
| Packaging data | |
| Quick start guide | Yes |
| CD manual | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| CD manual | Yes |
| System requirements | |
| Compatible operating systems | Windows 10, 8.1, 8, 7, Vista, XP |
