3LCD, 3500 lumens, 16:10, 1280 x 800, 250 W UHE, HDMI x 3, RJ-45, VGA x 2, USB x 2, RS-232c
Take classroom collaboration to another level with the PowerLite 685W widescreen ultra short-throw presentation display. Designed for today’s BYOD classroom, this WXGA performer displays 100" images from just 11" away for optimal visibility. Offering 3x Higher Color Brightness than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. Delivering 3,500 lumens of color and white brightness, the 685W ensures stimulating presentations. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks — up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.
Epson

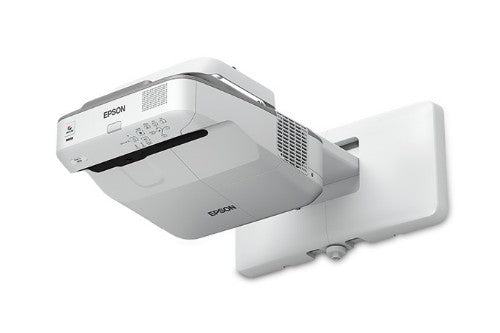

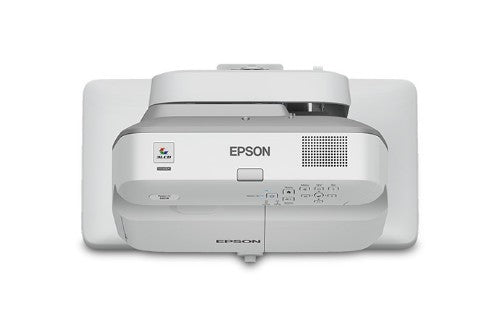

Epson PowerLite 685W data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Gray, White
Part number:
V11H744520
$1,496.68
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The ultimate ultra short-throw presentation display for BYOD classrooms.Take classroom collaboration to another level with the PowerLite 685W widescreen ultra short-throw presentation display. Designed for today’s BYOD classroom, this WXGA performer displays 100" images from just 11" away for optimal visibility. Offering 3x Higher Color Brightness than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. Delivering 3,500 lumens of color and white brightness, the 685W ensures stimulating presentations. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks — up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.073 billion colors |
| White light output | 3500 ANSI lumens |
| Colour light output | 3500 ANSI lumens |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 60 - 100" |
| Projection distance | 13.4 - 23.6" (0.34 - 0.6 m) |
| Contrast ratio (dynamic) | 14000:1 |
| Matrix type | 3-panel (p-Si TFT active) |
| Keystone correction, vertical | -3 - 3° |
| Keystone correction, horizontal | -3 - 3° |
| Projection technology | 3LCD |
| Projector brightness | 3500 ANSI lumens |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Lamp type | UHE |
| Lamp power | 250 W |
| Service life of light source (economic mode) | 10000 h |
| Lens system | |
| Fixed focal length | 0.146" (3.7 mm) |
| Zoom ratio | 1.35:1 |
| Zoom capability | Yes |
| Focus | Manual |
| Throw ratio | 0.28 - 0.37:1 |
| Digital zoom | 1.35x |
| Video | |
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | No |

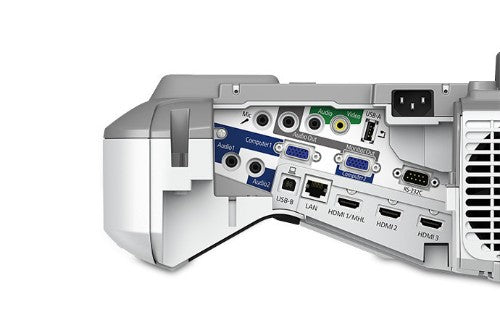

| Ports & interfaces | |
| Mobile High-Definition Link (MHL) | Yes |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| DVI port | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Password protection | Yes |
| Noise level | 35 dB |
| Noise level (economic mode) | 29 dB |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
| Design | |
| Market positioning | Education |
| Product type | Ultra short throw projector |
| Cable lock slot type | Kensington |
| Product colour | Gray, White |
| Cable lock slot | Yes |
| Placement | Ceiling, Desktop, Wall |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power consumption (typical) | 373 W |
| Power consumption (standby) | 2.2 W |
| Power consumption (economy mode) | 324 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Weight & dimensions | |
| Weight | 12.6 lbs (5.71 kg) |
| Width | 14.5" (368 mm) |
| Depth | 15.8" (401 mm) |
| Height | 7.4" (188 mm) |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Batteries included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Other features | |
| RS-232C | Yes |
| RS-232 ports | 1 |
| F-number (relative aperture) | 1.6 |
