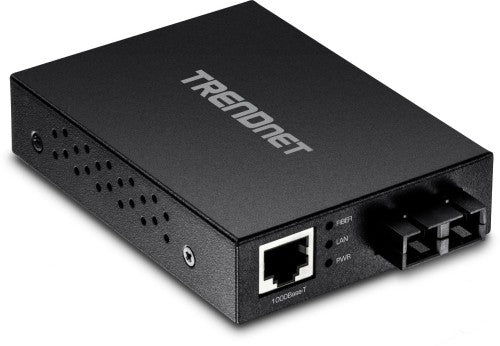

1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter
Trendnet
Trendnet TFC-GMSC network media converter 2000 Mbit/s 850 nm Black
Part number:
TFC-GMSC
Sale price
$66.72
Regular price
$81.39
Save
$14.67
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Functions as a standalone converter
- 10/100/1000 Mbps Auto-MDIX Gigabit port
- 100/1000 Mbps SC-type multi-mode fiber port
- Fiber networking over distances of up to 550 m (1800 ft.)
- 2 Gbps switching capacity
- LEDs convey power and copper / fiber link and activity
- Not compatible with TFC-1600
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet's TFC-GMSC, Gigabit Fiber Converter, is a Multi-Mode SC-Type fiber converter that converts 10/100/1000 Mbps ethernet to 100/1000 Mbps Fiber and spans distances up to 550 m (1,800 ft.). Ports include a 1000Base-T (RJ-45) port and a 1000Base-SX (SC-Type) fiber port.Specifications
| Network | |
|---|---|
| Supported network protocols | CSMA / CD |
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 1000Base-SX |
| Maximum data transfer rate | 2000 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Features | |
| LED indicators | LAN, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

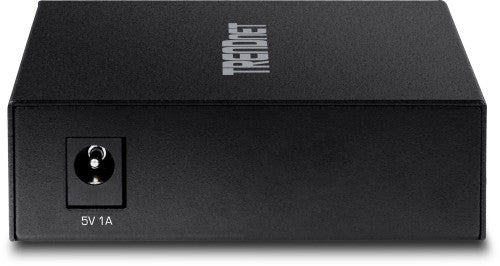

| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 2.6 W |
| Input voltage | 100 - 240 V |
| Input current | 0.2 A |
| Output voltage | 5 V |
| Output current | 1 A |
| External power adapter | Yes |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 4.02" (102 mm) |
| Depth | 2.95" (75 mm) |
| Weight | 6.74 oz (191 g) |
| Height | 0.89" (22.6 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Technical details | |
| Wavelength | 850 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Internal | No |
| Indication | |
| LED indicators | LAN, Power |
| Design | |
| LED indicators | LAN, Power |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
