10 Gigabit PCIe Network Adapter
10 G Port
Supports five selectable speeds: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps
PCI Express
Converts a PCIe 2.0 x4 slot into a 10 G Ethernet Port
NBASE-T™ Ethernet Technology
NBASE-T draft specification supports 2.5 and 5 Gbps speeds over standard Cat 5e cables at distances up to 100 m
Jumbo Frame
Sends larger packets, or jumbo frames (up to 16 KB), for increased performance
VLAN Support
IEEE 802.1Q tagged-based VLAN support
Brackets
Supports most installations with included standard and low-profile brackets
Operating Systems
Compatible with Windows®, Windows Server®, and Linux® operating systems.
LED Indicators
LED indicators convey port status, link speed and activity.
Trendnet

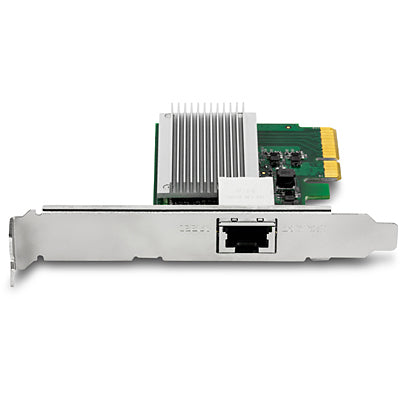

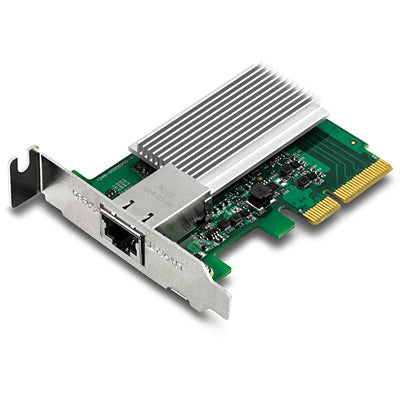

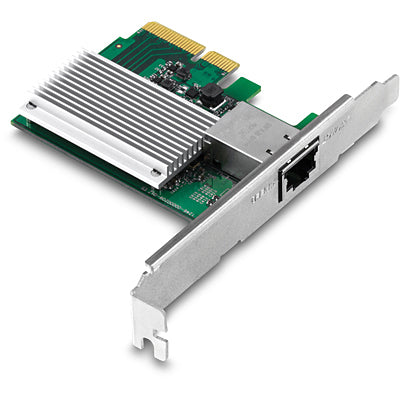

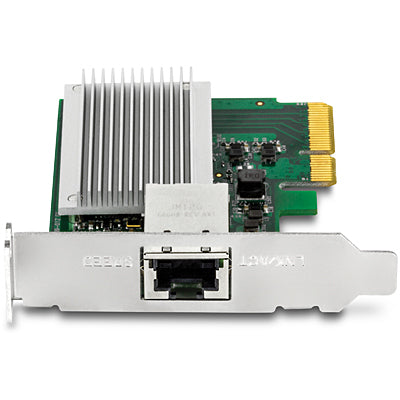

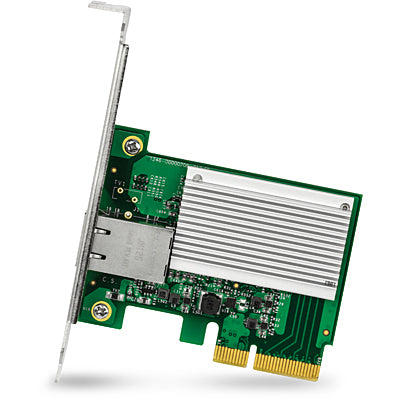

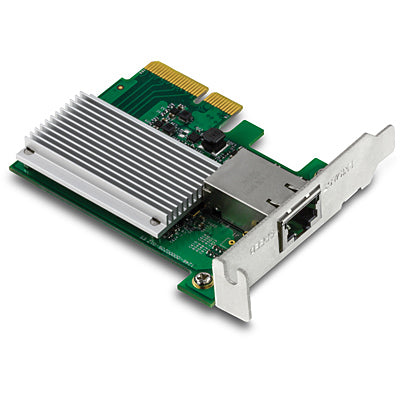

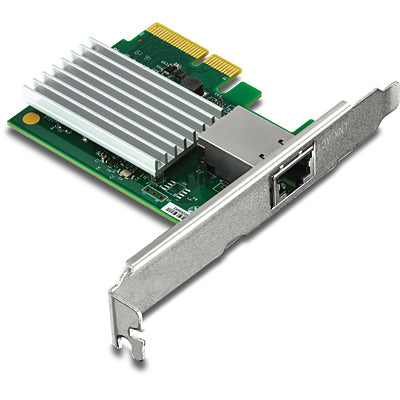

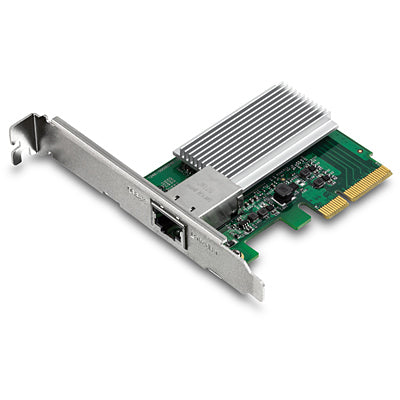

Trendnet TEG-10GECTX network card Internal Ethernet 10000 Mbit/s
Part number:
TEG-10GECTX
Sale price
$96.28
Regular price
$117.79
Save
$21.51
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Converts a PCIe slot into a 10 G Ethernet Port
- Supports 802.1Q VLAN Tagging
- Includes standard and low-profile brackets
- Windows® and Linux® support
Description
TRENDnet’s 10 Gigabit PCIe Network Adapter, model TEG-10GECTX, converts a free PCI Express slot into a 10 Gigabit Ethernet port.10 G Port
Supports five selectable speeds: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps
PCI Express
Converts a PCIe 2.0 x4 slot into a 10 G Ethernet Port
NBASE-T™ Ethernet Technology
NBASE-T draft specification supports 2.5 and 5 Gbps speeds over standard Cat 5e cables at distances up to 100 m
Jumbo Frame
Sends larger packets, or jumbo frames (up to 16 KB), for increased performance
VLAN Support
IEEE 802.1Q tagged-based VLAN support
Brackets
Supports most installations with included standard and low-profile brackets
Operating Systems
Compatible with Windows®, Windows Server®, and Linux® operating systems.
LED Indicators
LED indicators convey port status, link speed and activity.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Green, Gray |
| Receive Side Scaling (RSS) | Yes |
| Harmonized System (HS) code | 85176990 |
| Network | |
| VLAN tagging | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Jumbo frames | 16000 |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3u |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
| Product colour | Green, Gray |
| Certification | FCC, CE |
| Internal | Yes |
| LED indicators | Yes |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 3.31" (84 mm) |
| Depth | 0.709" (18 mm) |
| Height | 2.48" (63 mm) |
| Weight | 2.19 oz (62 g) |
| Packaging data | |
| Low-profile bracket | Yes |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Low-profile bracket | Yes |
| Quick start guide | Yes |
| Performance | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Receive Side Scaling (RSS) | Yes |
| Certificates | |
| Certification | FCC, CE |
| Other features | |
| Manual | Yes |
| Jumbo frames | 16000 |
| Receive Side Scaling (RSS) | Yes |
| Quick start guide | Yes |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
