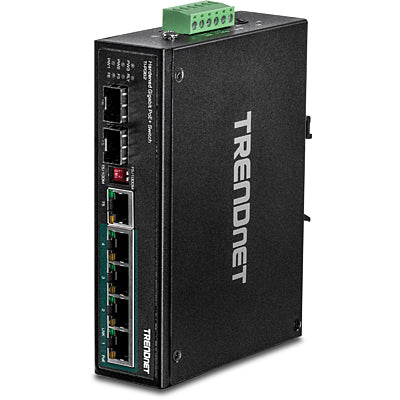

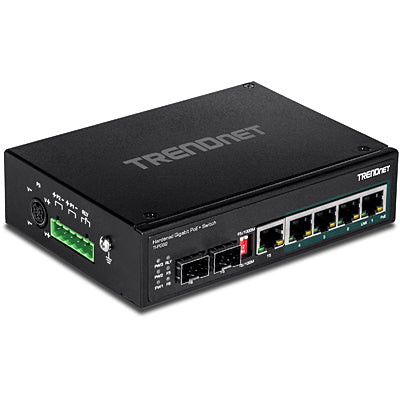

6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
PoE Power
A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.
Fault Tolerance

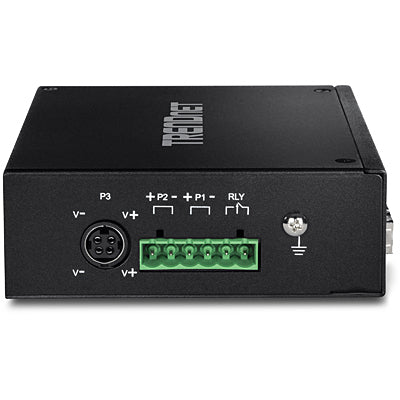

Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.
Trendnet
Trendnet TI-PG62 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TI-PG62
Sale price
$180.08
Regular price
$184.99
Save
$4.91
3%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 4 x Gigabit PoE+ ports
- 1 x shared Gigabit port (RJ-45 / SFP)
- 1 x dedicated SFP slot
- 120 Watt power budget
- 12 Gbps switching capacity
- Hardened IP30 rated metal switch

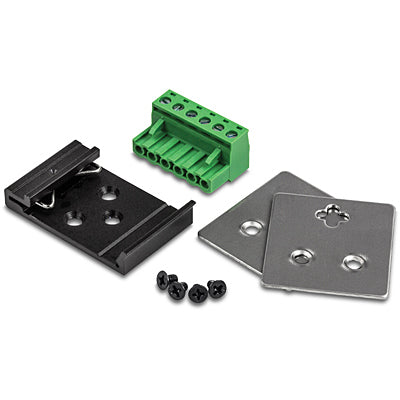

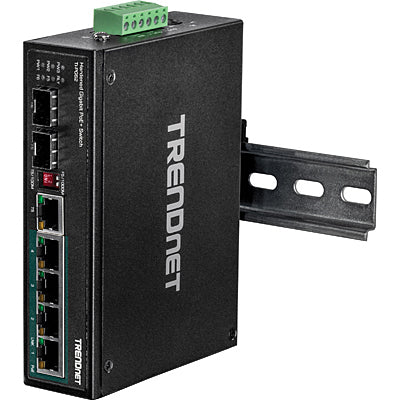

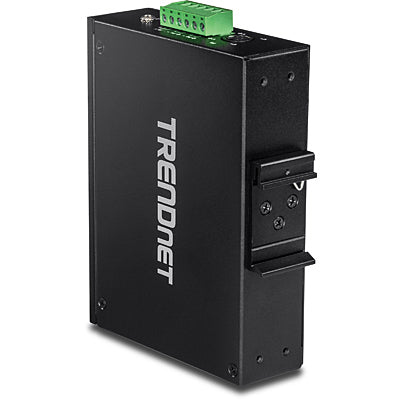

- Includes wall and DIN-rail mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- NDAA / TAA compliant
Description
TRENDnet’s TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Dual redundant power inputs and a power failure alarm relay.PoE Power
A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 1 |
| Terminal block port | Yes |
| Network | |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Throughput | 8.9 Mpps |
| MAC address table | 1000 entries |
| Switching capacity | 12 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Performance | |
| Buffer size | 1024 KB |
| Mean time between failures (MTBF) | 460304 h |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 5.76 W |
| Output voltage | 48 V |
| Output current | 3.34 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Input voltage | 48 - 56 V |
| Input current | 2 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Terminal block port | Yes |
| Input voltage | 48 - 56 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 5.63" (143 mm) |
| Depth | 4.13" (105 mm) |
| Height | 1.42" (36 mm) |
| Weight | 17.6 oz (500 g) |
| Packaging content | |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Packaging data | |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 460304 h |
| Housing material | Metal |
| Rack mounting | No |
| Certificates | |
| Certification | CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
