5-port, 10/100/1000T, unmanaged switch, external PSU, AC adaptor
The Allied Telesis GS910 Series offers unmanaged Gigabit switching solutions for the desktop, and small networks. With minimal to no set-up, GS910 Series switches provide simple and seamless connectivity to existing network infrastructure.
Allied Telesis

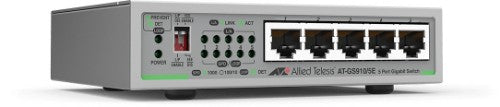

Allied Telesis GS910/5E Unmanaged 10G Ethernet (100/1000/10000) Gray
Part number:
AT-GS910/5E-10
Sale price
$102.23
Regular price
$137.00
Save
$34.77
25%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Power-saving features on each port including: cable length detection and power minimization, link-down power savings
- Wirespeed performance
- Non-blocking architecture
- Auto-negotiation Gigabit ports
- Auto MDI/MDI-X on TX ports
- Full-duplex flow control
- Sturdy metal case
- Silent operation; fanless
- Operating temperature 0-50°C
- EAP/BPDU passthrough
Description
Gigabit Ethernet Unmanaged SwitchThe Allied Telesis GS910 Series offers unmanaged Gigabit switching solutions for the desktop, and small networks. With minimal to no set-up, GS910 Series switches provide simple and seamless connectivity to existing network infrastructure.
Specifications
| Performance | |
|---|---|
| Packet buffer memory | 0.128 MB |
| Auto-negotiation | Yes |
| Technical details | |
| Product colour | Gray |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Network | |
| Cable length detection | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3az |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames | 9216 |
| Throughput | 7.4 Mpps |
| Packet buffer memory | 0.128 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Loop protection | Yes |
| Security algorithms | EAP |
| BPDU tunneling | Yes |
| Certificates | |
| Safety | UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB) |
| Certification | EAC, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022 |
| Memory | |
| Packet buffer memory | 0.128 MB |
| Design | |
| Safety | UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB) |
| Product colour | Gray |
| LED indicators | Yes |
| Certification | EAC, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022 |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 3.6 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.1 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 5.12" (130 mm) |
| Depth | 3.98" (101 mm) |
| Height | 1.18" (30 mm) |
| Weight | 25.4 oz (720 g) |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
