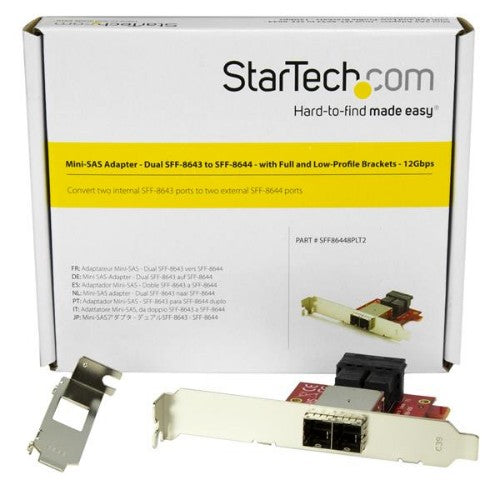

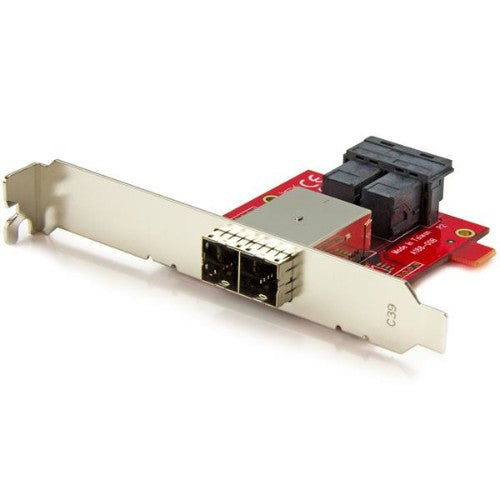

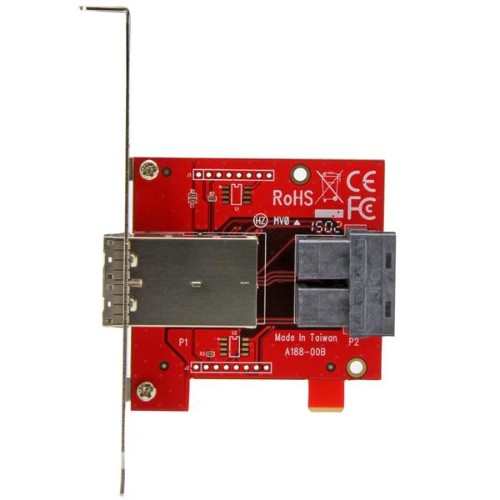

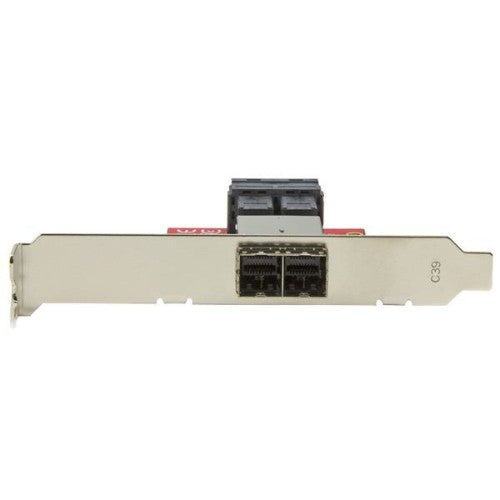

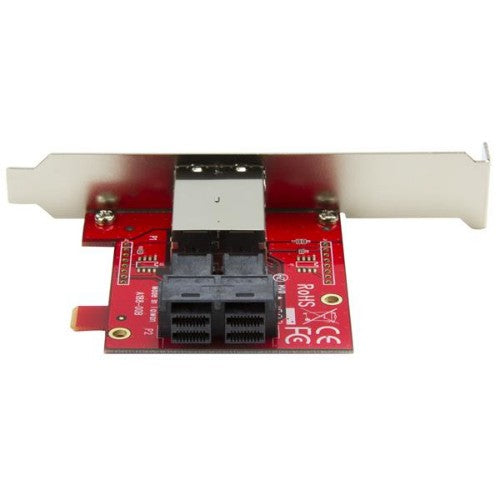

StarTech.com Mini-SAS Adapter - Dual SFF-8643 to SFF-8644 - with Full and Low-Profile Brackets - 12Gbps
The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives. For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included.
The SFF86448PLT2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
StarTech.com
StarTech.com SFF86448PLT2 interface cards/adapter Internal Mini-SAS HD
Part number:
SFF86448PLT2
$81.23
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage.The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives. For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included.
The SFF86448PLT2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Mini-SAS HD |
| Host interface | Mini SAS |
| Internal mini-SAS HD ports | 2 |
| External mini-SAS HD ports | 2 |
| Performance | |
| Product colour | Red |
| Harmonized System (HS) code | 84733020 |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Colour | |
| Product colour | Red |
| Design | |
| Internal | Yes |
| Product colour | Red |
| Certification | CE, FCC, TAA, REACH |
| Features | |
| Harmonized System (HS) code | 84733020 |
| Technical details | |
| Quantity per pack | 1 pc(s) |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 4.72" (120 mm) |
| Depth | 2.91" (74 mm) |
| Height | 0.866" (22 mm) |
| Weight | 1.9 oz (54 g) |
| Package width | 6.81" (173 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.3" (33 mm) |
| Package weight | 3.95 oz (112 g) |
| Packaging data | |
| Package width | 6.81" (173 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.3" (33 mm) |
| Package weight | 3.95 oz (112 g) |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Quantity per pack | 1 pc(s) |
