INDRy II M
- Economical switch delivers features normally found in more expensive switches.
- PoE 802.3af and PoE+ 802.3at compatible. Delivers up to 30W per port.
- SFP ports enable single-mode or multimode Gigabit fiber uplinks over long distances.
- Rated for extreme temperatures of -40 to +75° C.
- Dual DC power inputs for redundancy.
- IP30-rated housing is also rated for shock and vibration protection.
- Manage through a Web interface, SNMP, or command-line interface (CLI).
- Features bandwidth rate control, traffic prioritization, and quality of service.
- DIN rail or wall mount.
- Features bandwidth rate control, traffic prioritization, and quality of service.
PoE+ and SFP ports for flexibility.
This switch has eight 10/10/1000-Mbps PoE/PoE+ copper ports and four SFP ports for uplinks. This way you can power distant access points, security cameras, and other industrial equipment over the copper Ethernet lines at the far edges of your network where it's impractical to run electrical wires. The SFP fiber uplinks give you almost unlimited fiber distance options, depending on the SFP.
Maximize uptime.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. And you'll eliminate the need to send IT technicians on site—thus lowering costs. The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications. The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.
Fast failovers.
The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol. It offers a 20 millisecond or less failover.
Extreme applications.
Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:
- Security and surveillance, particularly to backhaul IP security camera data.
- Military applications, especially in ships and other vehicles.
- Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
- Oil and gas fields or remote equipment monitoring and control.
- Building automation for controlling HVAC and lighting systems.
Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-48 and SDR-240-48) are sold separately. The switch also includes a serial cable (RJ-45/DB9) for the console connection.
Black Box

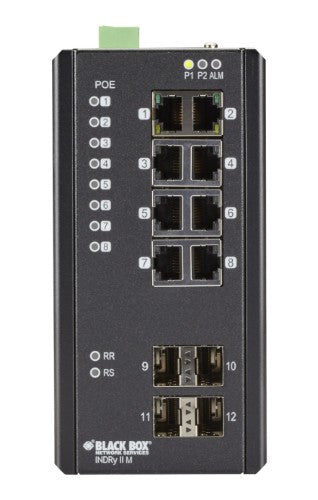

Black Box LIE1014A network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Part number:
LIE1014A
Sale price
$1,097.59
Regular price
$1,410.92
Save
$313.33
22%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Provides eight 10/100/1000-Mbps PoE+ RJ-45 ports and four multispeed Gigabit SFP slots.
- Use to connect and power security cameras and access points.
- Offers link loss recovery of <20-msec.
- DIN rail or wall mount.
- PoE 802.3af and PoE+ 802.3at compatible. Delivers up to 30W per port.
- SFP ports enable single-mode or multimode Gigabit fiber uplinks over long distances.
- Rated for extreme temperatures of -40 to +75° C.
- Dual DC power inputs for redundancy.
- IP30-rated housing is also rated for shock and vibration protection.
- Manage through a Web interface, SNMP, or command-line interface (CLI).
Description
DETAILS- Economical switch delivers features normally found in more expensive switches.
- PoE 802.3af and PoE+ 802.3at compatible. Delivers up to 30W per port.
- SFP ports enable single-mode or multimode Gigabit fiber uplinks over long distances.
- Rated for extreme temperatures of -40 to +75° C.
- Dual DC power inputs for redundancy.
- IP30-rated housing is also rated for shock and vibration protection.
- Manage through a Web interface, SNMP, or command-line interface (CLI).
- Features bandwidth rate control, traffic prioritization, and quality of service.
- DIN rail or wall mount.
- Features bandwidth rate control, traffic prioritization, and quality of service.
PoE+ and SFP ports for flexibility.
This switch has eight 10/10/1000-Mbps PoE/PoE+ copper ports and four SFP ports for uplinks. This way you can power distant access points, security cameras, and other industrial equipment over the copper Ethernet lines at the far edges of your network where it's impractical to run electrical wires. The SFP fiber uplinks give you almost unlimited fiber distance options, depending on the SFP.
Maximize uptime.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. And you'll eliminate the need to send IT technicians on site—thus lowering costs. The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications. The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.
Fast failovers.
The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol. It offers a 20 millisecond or less failover.
Extreme applications.
Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:
- Security and surveillance, particularly to backhaul IP security camera data.
- Military applications, especially in ships and other vehicles.
- Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
- Oil and gas fields or remote equipment monitoring and control.
- Building automation for controlling HVAC and lighting systems.
Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-48 and SDR-240-48) are sold separately. The switch also includes a serial cable (RJ-45/DB9) for the console connection.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic shaping | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| MIB support | FC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB; RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | |
| Number of VLANs | 256 |
| Data transmission | |
| Number of VLANs | 256 |
| Jumbo frames | 9000 |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Performance | |
| Auto-negotiation | Yes |
| Buffer size | 512 KB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Security | |
| Security algorithms | HTTPS, SSH |
| IGMP snooping | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | CE; EMS: FCC Part 15, CISPR 22 (EN55022) Class A; IEC61000-4-2, -3, -4, -5, -6 (Level 3), IEC68-2-6, -27, -32: RoHS/WEEE: RoHS, WEEE |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE; EMS: FCC Part 15, CISPR 22 (EN55022) Class A; IEC61000-4-2, -3, -4, -5, -6 (Level 3), IEC68-2-6, -27, -32: RoHS/WEEE: RoHS, WEEE |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 15 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 3.03" (77 mm) |
| Depth | 5.04" (128 mm) |
| Height | 6.06" (154 mm) |
| Weight | 3.09 lbs (1.4 kg) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
