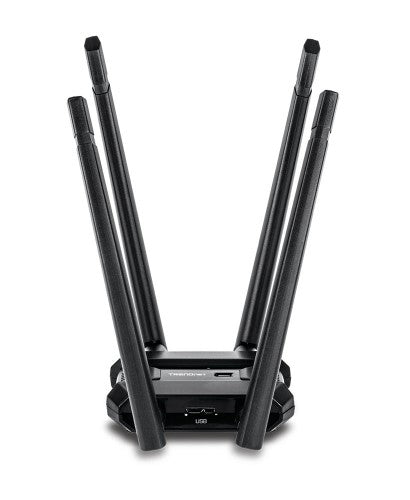

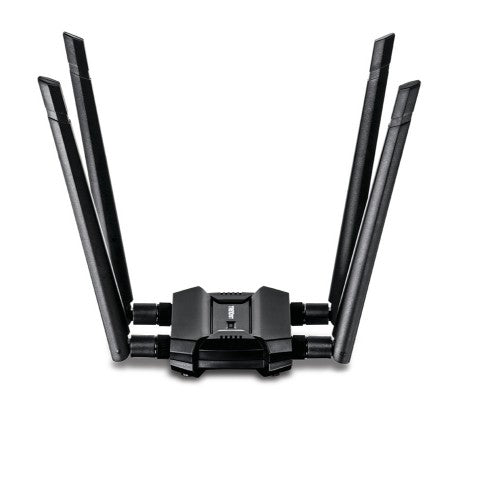

Trendnet AC1900 WLAN 1300 Mbit/s
  • Trendnet AC1900 WLAN 1300 Mbit/s
  • Trendnet AC1900 WLAN 1300 Mbit/s
  • Trendnet AC1900 WLAN 1300 Mbit/s
  • Trendnet AC1900 WLAN 1300 Mbit/s
  • Trendnet AC1900 WLAN 1300 Mbit/s
Trendnet AC1900 WLAN 1300 Mbit/s
Trendnet

Trendnet AC1900 WLAN 1300 Mbit/s

Part number: TEW-809UB
$45.31 $55.28
Save $9.97
18% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

IEEE 802.11a/b/g/n/ac, 1300 Mbps, 2.4/5 GHz, USB 3.0 Micro-B, Black

Key Features

  • Easy setup
  • AC1900: 1300 Mbps Wireless AC or 600 Mbps Wireless N bands
  • High power radio and high gain detachable antennas for increased coverage
  • Supports Windows and Mac operating systems

Description

TRENDnet’s AC1900 High Power Dual Band Wireless USB Adapter, model TEW-809UB, upgrades a computer to Wireless AC1900. Quickly connect to a high performance Wireless AC network at 1300 Mbps or to a Wireless N network at 600 Mbps. A high power radio with detachable high gain antennas increase wireless coverage.

WiFi Performance
Upgrade your computer to 1300 Mbps WiFi AC or 600 Mbps WiFi N to surf, game, and stream 4K HD video.

Beamforming
Beamforming increases real-time performance by directing stronger wireless signals to each device's specific location.

Increased Coverage
A high power radio with detachable antennas increase WiFi coverage.

Easy Setup
Get up and running in minutes with the intuitive guided setup
AC1900 Dual Band
Connect to an extreme performance 1300 Mbps Wireless AC or 600 Mbps Wireless N network*
Wireless Coverage
Extended wireless coverage with high power radio and detachable high gain antennas
LED Indicator
LED indicator conveys device status
Operating Systems
Compatible with Windows® and Mac® operating systems

Specifications

Ports & interfaces
Internal No
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity 1
Interface WLAN
Host interface USB
Connectivity technology Wireless
Bandwidth
Maximum data transfer rate 1300 Mbit/s
Wireless LAN features
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
WPS push button Yes
Channels quantity (EU) 13 channels
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi standards 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Quality of Service (QoS) support Yes
Security algorithms WEP, WPA, WPA2-PSK
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency range 2.4 - 5 GHz
Maximum data transfer rate 1300 Mbit/s
Gain 5 dBi
Receiver sensitivity 802.11a: -72 dBm (typical) @ 54 Mbps 802.11b: -84 dBm (typical) @ 11 Mbps 802.11g: -70 dBm (typical) @ 54 Mbps 802.11n (2.4GHz): -90 dBm (typical) @ 600 Mbps 802.11n (5GHz): -88 dBm (typical) @ 600 Mbps 802.11ac: -84 dBm (typical) @ 1300 Mbps
Antenna
Antennas quantity 4
Quality of Service (QoS) support Yes
Antenna Yes
Gain 5 dBi
Frequency range 2.4 - 5 GHz
Detachable antenna(s) Yes
Antenna connector type RP-SMA
Technical details
Quality of Service (QoS) support Yes
Product colour Black
Detachable antenna(s) Yes
Receiver sensitivity 802.11a: -72 dBm (typical) @ 54 Mbps 802.11b: -84 dBm (typical) @ 11 Mbps 802.11g: -70 dBm (typical) @ 54 Mbps 802.11n (2.4GHz): -90 dBm (typical) @ 600 Mbps 802.11n (5GHz): -88 dBm (typical) @ 600 Mbps 802.11ac: -84 dBm (typical) @ 1300 Mbps
Quantity per pack 1 pc(s)
Design
WPS push button Yes
Product colour Black
Antenna Yes
Certification CE, FCC
Internal No
LED indicators Yes
Antenna connector type RP-SMA
Receiver sensitivity 802.11a: -72 dBm (typical) @ 54 Mbps 802.11b: -84 dBm (typical) @ 11 Mbps 802.11g: -70 dBm (typical) @ 54 Mbps 802.11n (2.4GHz): -90 dBm (typical) @ 600 Mbps 802.11n (5GHz): -88 dBm (typical) @ 600 Mbps 802.11ac: -84 dBm (typical) @ 1300 Mbps
Antenna design External
Antennas quantity 4
Detachable antenna(s) Yes
Software
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Power
Power consumption (typical) 6.6 W
Indication
LED indicators Yes
System requirements
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 3.35" (85 mm)
Depth 2.95" (75 mm)
Height 0.787" (20 mm)
Weight 1.69 oz (48 g)
Security
Security algorithms WEP, WPA, WPA2-PSK
Packaging data
Drivers included Yes
Quantity per pack 1 pc(s)
Quick installation guide Yes
Cables included USB
Packaging content
Quick installation guide Yes
Cables included USB
Drivers included Yes
Performance
Security algorithms WEP, WPA, WPA2-PSK
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Receiver sensitivity 802.11a: -72 dBm (typical) @ 54 Mbps 802.11b: -84 dBm (typical) @ 11 Mbps 802.11g: -70 dBm (typical) @ 54 Mbps 802.11n (2.4GHz): -90 dBm (typical) @ 600 Mbps 802.11n (5GHz): -88 dBm (typical) @ 600 Mbps 802.11ac: -84 dBm (typical) @ 1300 Mbps
Certificates
Certification CE, FCC
Other features
Receiver sensitivity 802.11a: -72 dBm (typical) @ 54 Mbps 802.11b: -84 dBm (typical) @ 11 Mbps 802.11g: -70 dBm (typical) @ 54 Mbps 802.11n (2.4GHz): -90 dBm (typical) @ 600 Mbps 802.11n (5GHz): -88 dBm (typical) @ 600 Mbps 802.11ac: -84 dBm (typical) @ 1300 Mbps
Antennas quantity 4
Gain 5 dBi
Detachable antenna(s) Yes
Quantity per pack 1 pc(s)
