UCS SmartPlay Select C240 M4S Advanced 2, 2U, 2 x Xeon E5-2650V4, RAM 64 GB, SATA/SAS, 2.5", G200e, GigE

Description

Storage and I/O-Optimized Cisco UCS C-Series Rack Servers
Delivering Outstanding Performance and Expandability

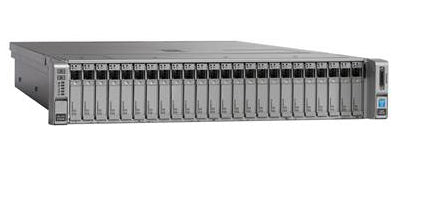

The Cisco UCS® C240 M4 Rack Server is our 2-socket, 2-rack-unit (2RU) rack server (Figure 1.) It offers outstanding performance and expandability for a wide range of storage and I/O-intensive infrastructure workloads, from big data to collaboration. The enterprise-class Cisco UCS C240 M4 server extends the capabilities of the Cisco Unified Computing System™ (Cisco UCS) portfolio in a 2RU form factor with the addition of the Intel® Xeon® processor E5-2600 v4 and v3 product family, which delivers a superb combination of performance, flexibility, and efficiency.

The enterprise-class Cisco UCS C240 M4 server extends the capabilities of the Cisco UCS portfolio in a 2RU form factor. Based on the Intel Xeon processor E5-2600 v4 and v3 series, it delivers an outstanding combination of performance, flexibility, and efficiency. In addition, the Cisco UCS C240 M4 offers outstanding levels of internal memory and storage expandability with exceptional performance. It delivers:

- Up to 24 DDR4 DIMMs at speeds up to 2400 MHz for improved performance and lower power consumption
- Up to 6 PCI Express (PCIe) 3.0 slots (4 full-height, full-length)
- Up to 24 small form factor (SFF) drives or 12 large form factor (LFF) drives, plus two (optional) internal SATA boot drives
- Support for 12-Gbps SAS drives
- A modular LAN-on-motherboard (mLOM) slot for installing a next-generation Cisco virtual interface card (VIC) or third-party network interface card (NIC) without consuming a PCIe slot
- 2 x 1 Gigabit Ethernet embedded LOM ports
Supports up to two double-wide NVIDIA graphics processing units (GPUs), providing a graphics-rich experience to more virtual users
- Excellent reliability, availability, and serviceability (RAS) features with tool-free CPU insertion, easy-to-use latching lid, hot-swappable and hot-pluggable components, and redundant Cisco® Flexible Flash (FlexFlash) SD cards.

Specifications

Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	105 W
Tcase	80 °C
Supported instruction sets	AVX 2.0
Stepping	M0
Scalability	2S
Processor threads	24
Processor package size	45 x 52.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Broadwell
Processor code	SR2N3
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Number of QPI links	2
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory channels supported by processor	Quad
Memory bandwidth supported by processor (max)	76.8 GB/s
Maximum number of PCI Express lanes	40
Maximum internal memory supported by processor	1.54 TB
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	Yes
ECC supported by processor	Yes
Bus type	QPI
Processor cache type	Smart Cache
Processor cache	30 MB
Conflict-Free processor	Yes
Processor series	Intel Xeon E5-2600 v4
Processor frequency	2.2 GHz
Number of processors installed	2
Processor model	E5-2650V4
Processor boost frequency	2.9 GHz
System bus rate	9.6 GT/s
Processor socket	LGA 2011-v3
Processor cores	12
Processor manufacturer	Intel
Motherboard chipset	Intel C610
Processor family	Intel® Xeon® E5 v4
Memory
Internal memory	64 GB
Memory slots	24
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
Hot-swap	Yes
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Hot-Plug support	Yes
HDD size	2.5"
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Network
Ethernet LAN	Yes
Ports & interfaces
VGA (D-Sub) ports quantity	2
Ethernet LAN (RJ-45) ports	6
Expansion slots
PCI Express slots version	3.0
Design
Rack mounting	Yes
Chassis type	Rack (2U)
Performance
Trusted Platform Module (TPM)	Yes
Processor special features
Intel® Identity Protection Technology (Intel® IPT)	No
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Processor ARK ID	91767
CPU configuration (max)	2
Power
Redundant power supply (RPS) support	Yes
Power supply input frequency	50 - 60 Hz
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	5 - 35 °C
Operating altitude	0 - 11811" (0 - 300 m)
Non-operating altitude	0 - 480000" (0 - 12192 m)
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Trusted Platform Module (TPM)	Yes
Rack mounting	Yes
Hot-Plug support	Yes
CPU configuration (max)	2
Chassis type	Rack (2U)
Packaging data
Products per pallet	1 pc(s)
Logistics data
Products per pallet	1 pc(s)
Weight & dimensions
Width	19" (482 mm)
Height	3.43" (87 mm)
Depth	30.2" (766 mm)
Other features
CPU configuration (max)	2
Products per pallet	1 pc(s)
