10 dBi Wireless N300 Outdoor PoE Access Point
- Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes
- IP67 rated housing
- Built in 10 dBi directional sector antenna
TRENDnet’s 10 dBi Outdoor PoE Access Point, model TEW-740APBO, provides Wireless N300 building-to-building connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes. The IP67 rated housing comes with wall and pole mounting hardware.
Point-to-Point
Wireless N300 building-to-building networking (2.4 GHz)
Installation Flexibility
Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes
Outdoor Ready
IP67 rated housing
Multi-Mode Support
Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes
Wireless N300 (2.4 GHz)
Compliant with 802.11n/g/b technology (2.4 GHz) with data rates up to 300 Mbps*
Outdoor Rated
Durable enclosure with an IP67 outdoor weather rating
Directional Antenna
Built in 10 dBi directional antenna
Power over Ethernet (PoE)
Comes with a proprietary PoE injector, so that it can connect a regular non-PoE switch
Logs
Real time logs and statistics help troubleshooting
Encrypted Wireless
Support for wireless encryption of up to WPA2
Multiple SSIDs
Create up to eight additional SSIDs
Compatibility
Compatible with legacy wireless devices
Mounting Hardware
Pole and wall mount hardware included
Trendnet

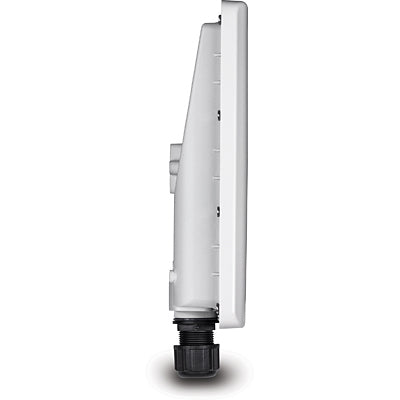

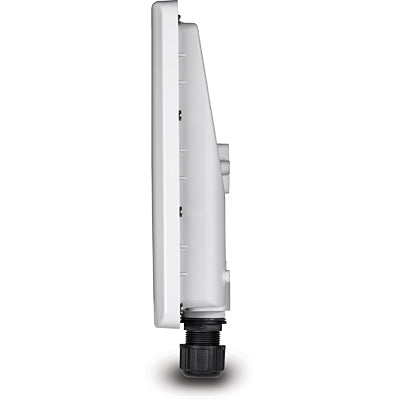

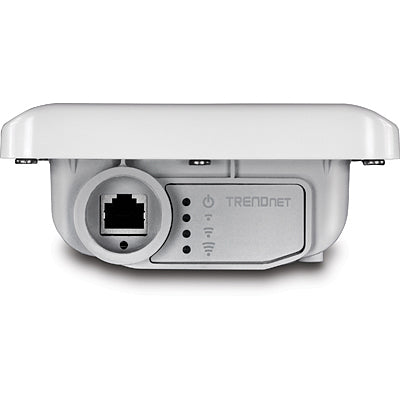

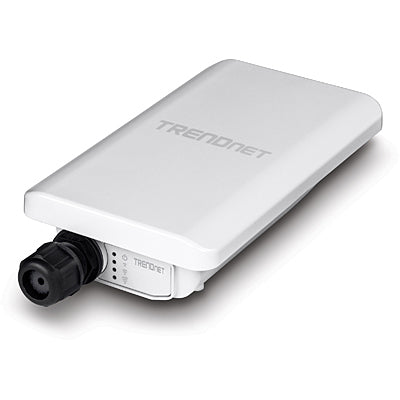

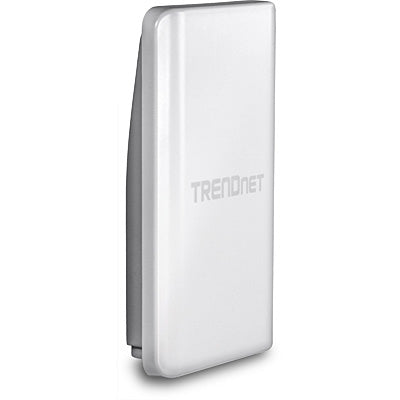

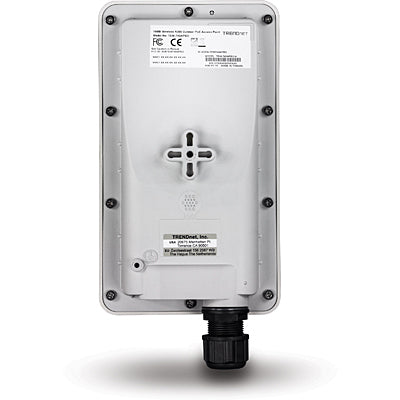

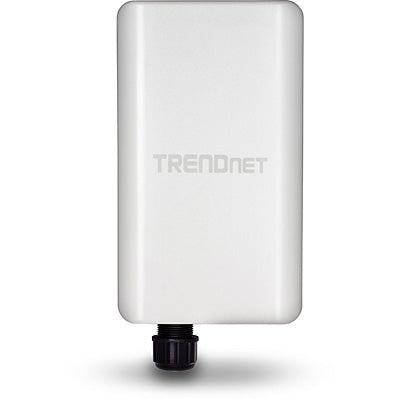

Trendnet TEW-740APBO wireless access point 300 Mbit/s Power over Ethernet (PoE)
Part number:
TEW-740APBO
Sale price
$98.37
Regular price
$99.99
Save
$1.62
2%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Wireless N300 point-to-point networking (2.4 GHz)
- Supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes
- Built-in 10 dBi directional antenna
- Proprietary PoE power adapter included
- 1 x 10/100Mbps PoE-in port, and 1 x 10/100Mbps port
- NDAA / TAA compliant (U.S. and Canada only)
Description
- Wireless N300 building-to-building networking (2.4 GHz)- Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes
- IP67 rated housing
- Built in 10 dBi directional sector antenna
TRENDnet’s 10 dBi Outdoor PoE Access Point, model TEW-740APBO, provides Wireless N300 building-to-building connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes. The IP67 rated housing comes with wall and pole mounting hardware.
Point-to-Point
Wireless N300 building-to-building networking (2.4 GHz)
Installation Flexibility
Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes
Outdoor Ready
IP67 rated housing
Multi-Mode Support
Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes
Wireless N300 (2.4 GHz)
Compliant with 802.11n/g/b technology (2.4 GHz) with data rates up to 300 Mbps*
Outdoor Rated
Durable enclosure with an IP67 outdoor weather rating
Directional Antenna
Built in 10 dBi directional antenna
Power over Ethernet (PoE)
Comes with a proprietary PoE injector, so that it can connect a regular non-PoE switch
Logs
Real time logs and statistics help troubleshooting
Encrypted Wireless
Support for wireless encryption of up to WPA2
Multiple SSIDs
Create up to eight additional SSIDs
Compatibility
Compatible with legacy wireless devices
Mounting Hardware
Pole and wall mount hardware included
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Reset button | Yes |
| Bandwidth | 2.4 GHz |
| Spread spectrum method | DSSS |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DQPSK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Certification | CE, FCC |
| Maximum data transfer rate | 300 Mbit/s |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DQPSK, DSSS, OFDM, QPSK |
| Network | |
| Internal | Yes |
| Spread spectrum method | DSSS |
| Networking standards | IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3u |
| Bandwidth | |
| Bandwidth | 2.4 GHz |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Bandwidth | 2.4 GHz |
| Spread spectrum method | DSSS |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DQPSK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Security | |
| Number of SSID supported | 8 |
| IP address filtering | Yes |
| Security algorithms | HTTPS, SSID, WDS, WPA-PSK, WPA2, WPA2-PSK, WPA2-RADIUS |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 22 W |
| Output voltage | 48 V |
| Output current | 0.5 A |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.6 A |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Design | |
| International Protection (IP) code | IP67 |
| Placement | Pole, Wall |
| Reset button | Yes |
| Internal | Yes |
| LED indicators | Yes |
| Certification | CE, FCC |
| Antenna | |
| Antennas quantity | 1 |
| Antenna gain level (max) | 10 dBi |
| Antenna features | Integrated antenna |
| Technical details | |
| Reset button | Yes |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 4.92" (125 mm) |
| Depth | 2.13" (54 mm) |
| Weight | 15 oz (424 g) |
| Height | 8.58" (218 mm) |
| Packaging data | |
| Waterproof cable kit included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Packaging content | |
| Waterproof cable kit included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
