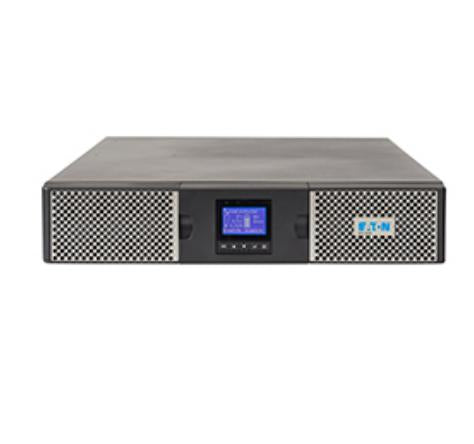

Double-conversion online, 3000VA, 3000W, 2 x L6-20R & 1 x L6-30R Outlets

Description

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

Specifications

Power
Output voltage regulation	1%
Input power factor	0.99
Output power	3000 W
Input operation voltage (min)	100 V
Input operation voltage (max)	276 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	93%
Emergency Power Off (EPO)	Yes
Power factor	1
Output voltage Total Harmonic Distortion (THD)	3%
Input frequency	50/60 Hz
Performance
UPS topology	Double-conversion (Online)
LED indicators	Yes
Surge protection	Yes
Noise level	47 dB
Features
UPS topology	Double-conversion (Online)
Output voltage regulation	1%
Input power factor	0.99
Output power	3000 W
Input operation voltage (min)	100 V
Input operation voltage (max)	276 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Efficiency	93%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Power factor	1
Output voltage Total Harmonic Distortion (THD)	3%
Noise level	47 dB
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	3 AC outlet(s)
AC outlet types	NEMA L6-20R, NEMA L6-30R
Power plug	NEMA L6-20P
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Cold start	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black, Silver
Certification	IEC 62040-2 Class B Cat C2 / CISPR22 Class B / FCC part 15 Class B / VCCI Class B CE / cULus / NOM
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 55 °C
Operating relative humidity (H-H)	0 - 96%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Weight & dimensions
Weight	60.4 lbs (27.4 kg)
Width	17.3" (440 mm)
Height	3.41" (86.5 mm)
Depth	23.8" (605 mm)
Packaging data
Quick installation guide	Yes
Manual	Yes
Cables included	Input power cable, Output power cable, RS-232, USB cable
Certificates
Certification	IEC 62040-2 Class B Cat C2 / CISPR22 Class B / FCC part 15 Class B / VCCI Class B CE / cULus / NOM
Other features
Nominal output voltage	208 V
Nominal input voltage	208 V
Packaging content
Quick installation guide	Yes
Manual	Yes
Cables included	Input power cable, Output power cable, RS-232, USB cable
