Double-conversion online, 3000VA, 3000W, 6 x 5-20R & 1 x L6-30R & 1 x L14-30R Outlets

Description

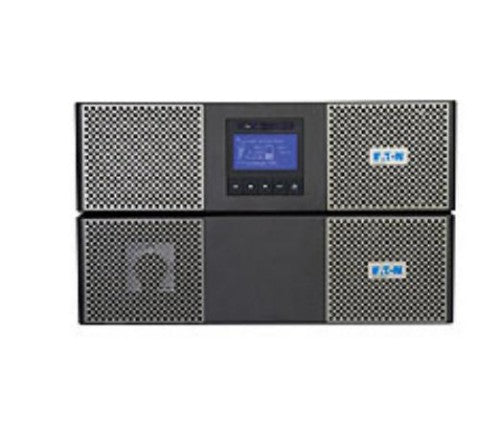

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

Specifications

Power
Output voltage regulation	1%
Output power factor	1
Input power factor	0.99
Output power	3000 W
Input operation voltage (min)	100 V
Input operation voltage (max)	276 V
Output operation voltage (min)	120 V
Output operation voltage (max)	240 V
Efficiency	92%
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Output power capacity	3 kVA
Input frequency	50/60 Hz
Performance
UPS topology	Double-conversion (Online)
LED indicators	Yes
Surge protection	Yes
Noise level	45 dB
Features
Web-based management	Yes
Management protocols	SNMP
UPS topology	Double-conversion (Online)
Output voltage regulation	1%
Output power factor	1
Input power factor	0.99
Output power	3000 W
Input operation voltage (min)	100 V
Input operation voltage (max)	276 V
Output operation voltage (min)	120 V
Output operation voltage (max)	240 V
Efficiency	92%
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	45 dB
Output power capacity	3 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA L14-30R, NEMA L5-20R, NEMA L6-30R
Power plug	NEMA L6-30P
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Battery technology	Sealed Lead Acid (VRLA)
Hot-swap battery	Yes
Cold start	Yes
Design
Rack capacity	6U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black, Silver
Certification	IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A CE / cULus / NOM
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Management features
Web-based management	Yes
Management protocols	SNMP
Weight & dimensions
Weight	202.8 lbs (92 kg)
Width	17.3" (439 mm)
Height	10.2" (259 mm)
Depth	28.4" (721 mm)
Packaging data
Quick installation guide	Yes
Manual	Yes
Cables included	RS-232, USB cable
Certificates
Certification	IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A CE / cULus / NOM
Other features
Nominal output voltage	120 - 240 V
Nominal input voltage	208 V
Packaging content
Quick installation guide	Yes
Manual	Yes
Cables included	RS-232, USB cable
