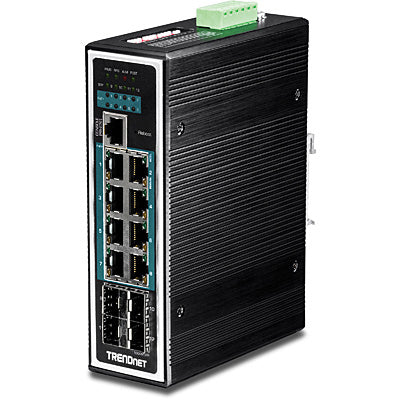

12-Port Industrial Gigabit L2+ Managed PoE+ DIN-Rail Switch
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.
Integration Flexibility
Managed features include PoE control, IP static routing, access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
Full PoE+ Power Budget
Supplies up to 30 Watts of PoE / PoE+ power per port with a 240 Watts PoE power budget
Network Ports and Capacity

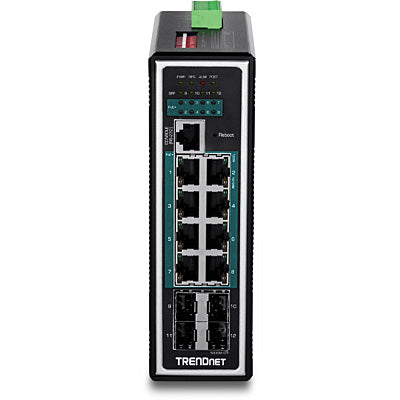

8 x Gigabit PoE+ ports and 4 x Gigabit SFP slots allow for a 24 Gbps switching capacity and 1 x console (RJ-45 to RS-232) for out-of-band management
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-Rail mounting hardware
Full PoE Control Per Port
PoE control features include enabling/disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management.
Traffic Management
Managed features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, and Xpress Ring + ERPS protection for flexible network integration.
Layer 2+ Management
Offers IPv4 / IPv6 static or DHCPv4 / v6 assignment, IPv4 / IPv6 static routing and proxy ARP, DHCP server / relay / option 82, and DHCP server snooping / screening to filter out unauthorized DHCP servers
Access Controls
Management via HTTPS and SSH protocols and features such as trusted host, ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, IP Source Guard provide layered network access controls.
System Monitoring
Monitoring features include SNMP v1 / v2c / 3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, SFP DDMI, and ModBus / TCP.
Redundant Power
Dual redundant power inputs (primary and RPS) with overload current protection
Alarm Output

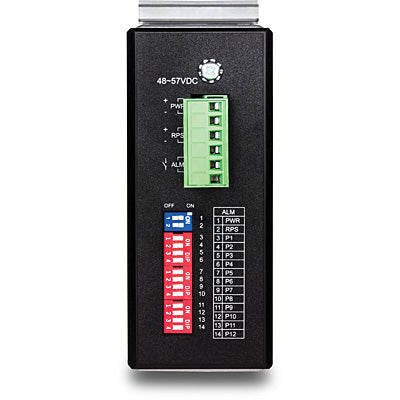

Alarm relay output triggered by power failure of primary and/or redundant power and failure per port (DIP switch)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10 K)
Wide Temperature
Hardened switch is rated for an operating temperature range of - 40 to 75 °C (-40 to 167 °F)
Electro Magnetic Compliance
Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
LED Indicators
LED indicators convey power, redundant power, alarm, SFP, PoE, and network port status
Grounding Point
Grounding point protects equipment from external electrical surges
Trendnet
Trendnet TI-PG1284i Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
TI-PG1284I
Sale price
$839.70
Regular price
$1,033.71
Save
$194.01
19%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 x Gigabit PoE+ ports
- 4 x SFP slots
- Supports 1000Base-FX fiber SFP modules
- 240W PoE power budget
- PoE alive check restarts unresponsive PoE powered devices
- 24Gbps switching capacity
- Hardened IP30 rated metal housing
- Includes DIN-rail mounting bracket
- Operating temperature range of -40° – 75° C (-40° – 167° F)
- Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
- IEEE 802.1p QoS with queue scheduling support
- CLI (Console / Telnet / SSH), Web (HTTP / HTTPS), SNMP v1 / 2c / 3 management
- 802.1Q / Q-in-Q VLAN and IGMP Snooping / MLD / MVR support
- 802.1p / DSCP / Queue Scheduling (SPQ / WRR) QoS support
- Bandwidth control per port
- Dual inputs provide redundant power with overload current protection
- Alarm output triggered by power failure
- Supports Ethernet Ring Protection Switching (ERPSv2)
- NDAA / TAA compliant
Description
TRENDnet’s 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch, model TI-PG1284i, has eight Gigabit PoE+ ports, four Gigabit SFP slots, and a 240 Watts PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range (- 40 – 75 °C (- 40 - 167°F)) for harsh environments. L2+ management include features such as PoE port control, 802.1Q / Q-in-Q VLAN, multicast, spanning tree, link aggregation, QoS, IPv4 / IPv6 static routing, ACLs, and 802.1X which allow for network integration flexibility.Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.
Integration Flexibility
Managed features include PoE control, IP static routing, access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
Full PoE+ Power Budget
Supplies up to 30 Watts of PoE / PoE+ power per port with a 240 Watts PoE power budget
Network Ports and Capacity
8 x Gigabit PoE+ ports and 4 x Gigabit SFP slots allow for a 24 Gbps switching capacity and 1 x console (RJ-45 to RS-232) for out-of-band management
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-Rail mounting hardware
Full PoE Control Per Port
PoE control features include enabling/disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management.
Traffic Management
Managed features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, and Xpress Ring + ERPS protection for flexible network integration.
Layer 2+ Management
Offers IPv4 / IPv6 static or DHCPv4 / v6 assignment, IPv4 / IPv6 static routing and proxy ARP, DHCP server / relay / option 82, and DHCP server snooping / screening to filter out unauthorized DHCP servers
Access Controls
Management via HTTPS and SSH protocols and features such as trusted host, ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, IP Source Guard provide layered network access controls.
System Monitoring
Monitoring features include SNMP v1 / v2c / 3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, SFP DDMI, and ModBus / TCP.
Redundant Power
Dual redundant power inputs (primary and RPS) with overload current protection
Alarm Output
Alarm relay output triggered by power failure of primary and/or redundant power and failure per port (DIP switch)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10 K)
Wide Temperature
Hardened switch is rated for an operating temperature range of - 40 to 75 °C (-40 to 167 °F)
Electro Magnetic Compliance
Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
LED Indicators
LED indicators convey power, redundant power, alarm, SFP, PoE, and network port status
Grounding Point
Grounding point protects equipment from external electrical surges
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | RFC 1213, RFC 1493, RFC 1643, RFC 1757 |
| Switch layer | L2+ |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
| Terminal block port | Yes |
| Network | |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Throughput | 17.86 Mpps |
| Packet buffer memory | 128 MB |
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Jumbo frames support | Yes |
| Multicast MAC address table | 256 entries |
| Number of VLANs | 256 |
| Security | |
| Loop protection | Yes |
| Authentication | Port-based authentication |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast MAC address table | 256 entries |
| Multicast support | Yes |
| Design | |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | No |
| Certification | CE, FCC |
| Performance | |
| Mean time between failures (MTBF) | 322805 h |
| Packet buffer memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 260 W |
| Output voltage | 48 V |
| Output current | 5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Terminal block port | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| Weight & dimensions | |
| Width | 6.69" (170 mm) |
| Depth | 5.2" (132 mm) |
| Height | 1.97" (50 mm) |
| Weight | 32.5 oz (920 g) |
| Packaging content | |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Resource CD | Yes |
| Packaging data | |
| Terminal block included | Yes |
| Resource CD | Yes |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 322805 h |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 128 MB |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
