28-Port Gigabit Web Smart Switch with 10G SFP+ slots
- 24 x Gigabit ports and 4 x 10G SFP+ slots for high speed connections
- Easy to use web-based management interface
- 128 Gbps switching capacity
- 802.1Q, Dynamic GVRP, Private, and Voice VLAN
- IGMP v1, v2, v3 snooping
- STP, RSTP, and MSTP spanning tree protocols
- SNMP (v1, v2c, v3), SNMP Trap, RMON, port mirror, syslog, and SMTP alert
- ACLs, MAC filtering, DoS, and 802.1X / TACACS+ network access control
- 802.1p / DSCP / Queue Scheduling QoS support
- Smart fans reduce energy consumption and auto adjust for efficiency
Trendnet

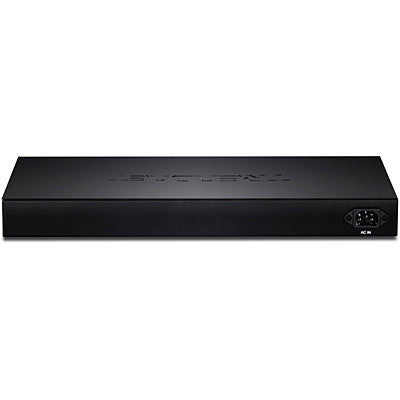

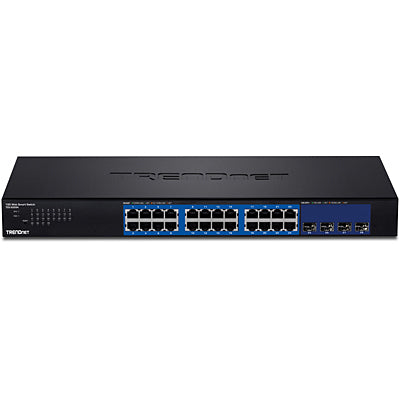

Trendnet TEG-30284 network switch Managed Gigabit Ethernet (10/100/1000) 1U Black
Part number:
TEG-30284
Sale price
$236.35
Regular price
$288.47
Save
$52.12
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 24 x Gigabit ports
- 4 x 10G SFP+ slots
- Remote cloud management with TRENDnet Hive (Additional fee applies)
- Easy-to-use web-based management interface
- Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
- IPv4/IPv6 Static Routing support
- Bandwidth control per port
- Private, Multicast, and Voice VLAN support
- Fanless design ensures silent operation
- 128Gbps switching capacity
- IEEE 802.1p QoS with queue scheduling support
- NDAA / TAA compliant (U.S. and Canada only)
Description
Features:- 24 x Gigabit ports and 4 x 10G SFP+ slots for high speed connections
- Easy to use web-based management interface
- 128 Gbps switching capacity
- 802.1Q, Dynamic GVRP, Private, and Voice VLAN
- IGMP v1, v2, v3 snooping
- STP, RSTP, and MSTP spanning tree protocols
- SNMP (v1, v2c, v3), SNMP Trap, RMON, port mirror, syslog, and SMTP alert
- ACLs, MAC filtering, DoS, and 802.1X / TACACS+ network access control
- 802.1p / DSCP / Queue Scheduling QoS support
- Smart fans reduce energy consumption and auto adjust for efficiency
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Throughput | 95.2 Mpps |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 256 |
| Security | |
| Authentication | Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP (v1, v2c, v3) |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| Certification | CE FCC UL |
| Performance | |
| Maximum data transfer rate | 20000 Mbit/s |
| Buffer size | 2048 KB |
| Noise level | 50 dB |
| Mean time between failures (MTBF) | 450021 h |
| Compatible operating systems | Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003 / 2008 Server |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 25 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Virtual LAN features | Private VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 8.27" (210 mm) |
| Height | 1.75" (44.5 mm) |
| Weight | 5.82 lbs (2.64 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Resource CD | Yes |
| Packaging data | |
| Resource CD | Yes |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Noise level | 50 dB |
| Mean time between failures (MTBF) | 450021 h |
| Rack mounting | Yes |
| Certificates | |
| Certification | CE FCC UL |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Compatible operating systems | Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003 / 2008 Server |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
