XGA 1024 x 768, 3500 ANSI, 15000:1, 4:3, DMD 0.55", 1.6- 1.92, 1 - 10m, 3.05 kg
EXCELLENT CONNECTIVITY

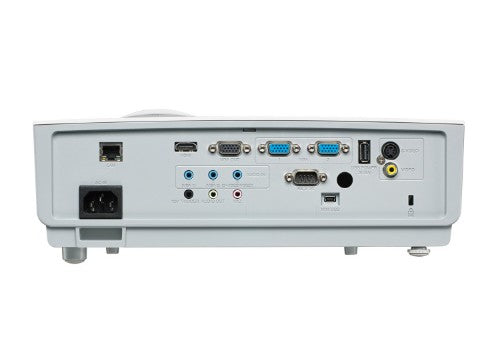

The Vivitek DX813 is the projector you want for widescreen versatility: Mini USB service connection, USB Type A (Power only), DC-12V, LAN for internet, Video for everyday video devices, Right and Left Audio, VGA-Out, Rs232c, VGA-In, Audio-Out, Audio-In, Microphone-In, S-video, and HDMI v1.4.
FILTER-FREE DESIGN
DLP® technology allows manufacturers to create a filter-free projection design. Filter-free means significant savings and lower maintenance efforts over the projector's lifespan, which means a lower total cost of ownership for the projector.
DLP® Technology
DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready
A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
HDMI
HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP.
Vivitek

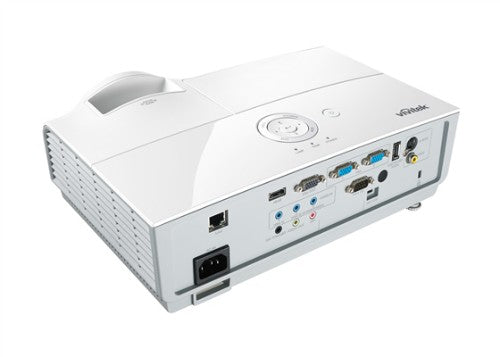

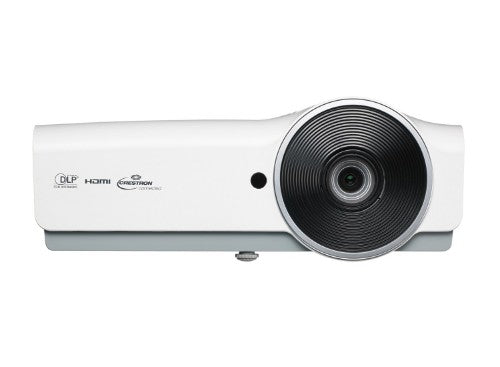

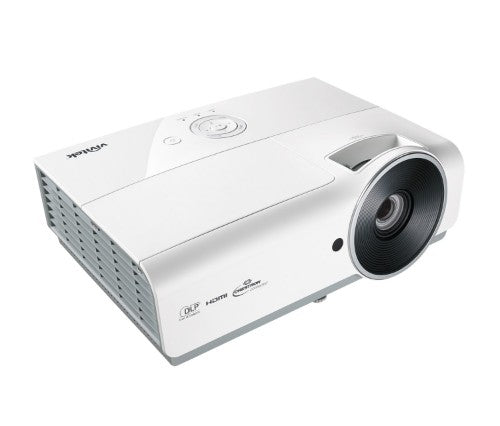

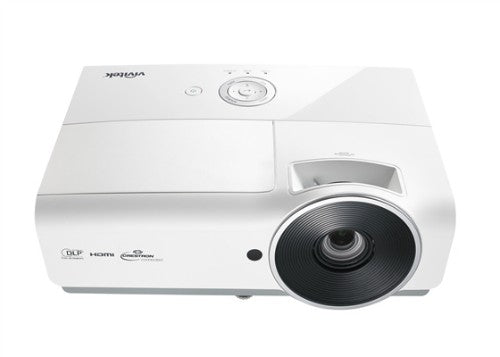

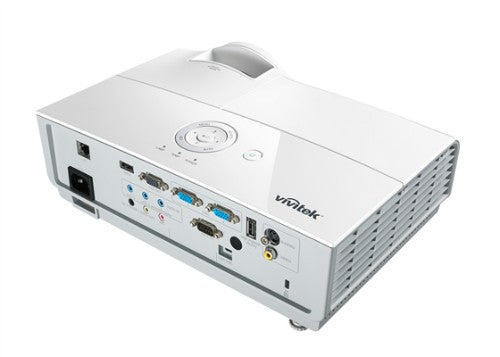

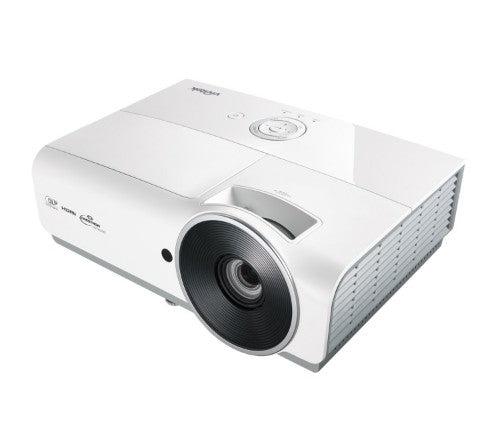

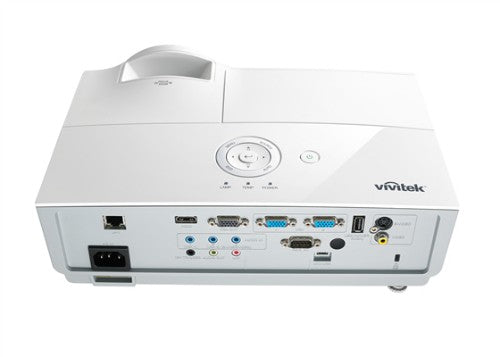

Vivitek DX813 data projector Standard throw projector 3600 ANSI lumens DLP XGA (1024x768) 3D Gray, White
Part number:
DX813
Sale price
$600.65
Regular price
$1,099.00
Save
$498.35
45%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Bright 3,500 ANSI lumens with a high 15,000:1 contrast ratio
- Energy efficient lamps that last up to 7,000 hours (in dynamic eco. mode)
- 6 Segment (RYGCWB) color wheel for accurate and detailed images
- Auto search filtering to quickly locate input signal source
- Variety of display connectivity options including: HDMI, VGA-in (2x), VGA-Out, S-Video and Composite Video
- User memory settings for such functions as display mode, 3D and resolution
- 3D compatibility with DLP® Link™ and HDMI 1.4b Blu-Ray support for dazzling and realistic life-like images
- Internal audio speaker delivers 10W of total audio power
- Integrated network monitoring and management solutions (product certified) including Crestron® RoomView™, Extron, AMX SSDP and Telnet
- Top-loading, sliding cover for quick and easy lamp replacement
- Sealed optical engine, minimizing the impact of dust and smoke
- Anti-theft security features include: Kensington® security slot, security bar, and PIN lock keypad
Description
The Vivitek DX813 projector delivers exceptional digital images with a high degree of vibrancy due to 3,500 ANSI lumens of brightness and a contrast ratio of 15,000:1. Featuring native XGA resolution the DX813 is designed for a wide variety of applications. Light weight at just over 3 kg it allows for easy transportation between different conference rooms or external meetings. The projector offers top-loading as well as a sliding cover for quick lamp replacement. With a lamp life of up to 7,000 hours in Eco mode, results in an attractive cost of ownership. Furthermore, the sealed optical engine minimizes the impact of dust and smoke. The versatile connectivity options ensure an easy set up and connections to a wide variety of multimedia devices found in the professional environment.EXCELLENT CONNECTIVITY
The Vivitek DX813 is the projector you want for widescreen versatility: Mini USB service connection, USB Type A (Power only), DC-12V, LAN for internet, Video for everyday video devices, Right and Left Audio, VGA-Out, Rs232c, VGA-In, Audio-Out, Audio-In, Microphone-In, S-video, and HDMI v1.4.
FILTER-FREE DESIGN
DLP® technology allows manufacturers to create a filter-free projection design. Filter-free means significant savings and lower maintenance efforts over the projector's lifespan, which means a lower total cost of ownership for the projector.
DLP® Technology
DLP (Digital Light Processing) is a display technology from Texas Instruments (TI). The technology inside is often referred to as DMD (Digital Micro-Mirrors). It consists of an array of mirrors where each mirror represents a pixel element. For example, a high-definition DLP projector or rear projector with 1920 x 1080 pixel resolution would have over 2 million tiny mirrors. Each mirror is attached to an electronically driven hinge that controls the amount of colored light that is reflected from
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
3D Ready
A projector that is 3D Ready can accept a 120Hz frame-sequential 3D signal from a computer. These projectors are not compatible with the HDMI 1.4 3D specification used on 3D Blu-ray players and set-top boxes. 3D ready uses DLP Link Technology from Texas Instruments.
HDMI
HDMI (High Definition Multimedia Interface) is an uncompressed, all-digital audio/video interface that supports audio/video sources such as a set-top box, DVD player, A/V receiver, and video monitors such as a digital projector or digital television (DTV). HDMI is backward compatiable with DVI 1.0 specification and supports HDCP.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.07 billion colors |
| Projector native resolution | XGA (1024x768) |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 16:9 |
| Screen size compatibility | 25.6 - 256.4" |
| Projection distance | 39.4 - 393.7" (1 - 10 m) |
| Contrast ratio (typical) | 15000:1 |
| Vertical scan range | 24 - 30 Hz |
| Horizontal scan range | 15 - 91.4 kHz |
| Uniformity | 85% |
| Matrix type | DMD |
| Matrix size | 0.55" |
| Keystone correction, vertical | ±40° |
| Keystone correction, horizontal | ±40° |
| Projection technology | DLP |
| Projector brightness | 3600 ANSI lumens |
| Smart projector | No |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 3500 h |
| Lamp power | 240 W |
| Service life of light source (economic mode) | 7000 h |
| Service life of light source (portrait mode) | 5000 h |
| Lens system | |
| Zoom ratio | 1.2:1 |
| Focus | Manual |
| Focal length range | 17.81 - 21.35 mm |
| Aperture range (F-F) | 2.5 - 2.72 |
| Throw ratio | 1.6 - 1.92:1 |
| Offset | 113.9% |
| Zoom type | Manual |
| Video | |
| Supported 3D formats | Frame packing, Side by side |
| Analog signal format system | NTSC, NTSC 3.58, NTSC 4.43, NTSC M, PAL, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| HD-Ready | Yes |
| 3D | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Ports & interfaces | |
| 12V trigger | Yes |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Composite video in | 1 |
| Microphone in | Yes |
| S-Video inputs quantity | 1 |
| Serial interface type | RS-232 |
| HDMI version | 1.4b |
| DVI port | No |
| AC (power) in | Yes |
| Mini-USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Network | |
| Smart TV | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| HDCP | Yes |
| Noise level | 36 dB |
| Noise level (economic mode) | 32 dB |
| Projection modes | Ceiling, Front, Rear |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Design | |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Cable lock slot type | Kensington |
| Product colour | Gray, White |
| Cable lock slot | Yes |
| Placement | Desktop, Ceiling |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 250 W |
| Weight & dimensions | |
| Weight | 6.75 lbs (3.06 kg) |
| Width | 12.4" (314 mm) |
| Depth | 8.5" (216 mm) |
| Height | 4.96" (126 mm) |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC, VGA |
| Batteries included | Yes |
| Other features | |
| Audio output | 1 |
| Audio input | 3 |
| RS-232 ports | 1 |
| Maximum digital resolution | 1920 x 1200 pixels |
