10/100 Mbs Ethernet Switch, +5V to +30V DC, 1.5 W, 8 x RJ45, reverse polarity protection
- Integrated DIN Rail Mount
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- No software required
- Lifetime Warranty and Support
Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Brainboxes

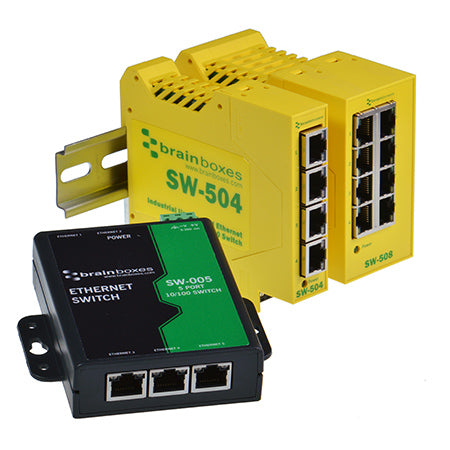

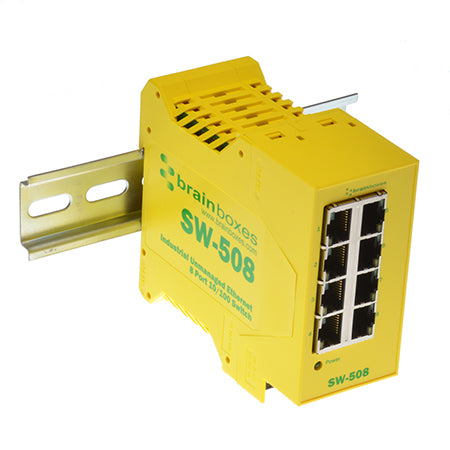

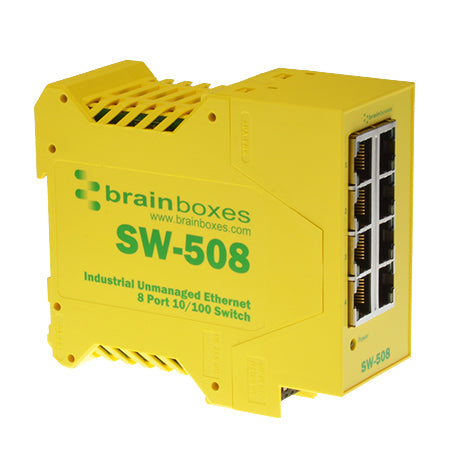

Brainboxes SW-508 network switch Unmanaged Fast Ethernet (10/100) Yellow
Part number:
SW-508
Sale price
$125.63
Regular price
$145.37
Save
$19.74
14%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
- 8 Port Ethernet Switch- Integrated DIN Rail Mount
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- No software required
- Lifetime Warranty and Support
Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Specifications
| Technical details | |
|---|---|
| Product colour | Yellow |
| Housing material | Polyamide |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| Design | |
| DIN rail mounting | Yes |
| Product colour | Yellow |
| LED indicators | Yes |
| Housing material | Polyamide |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 1.5 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |

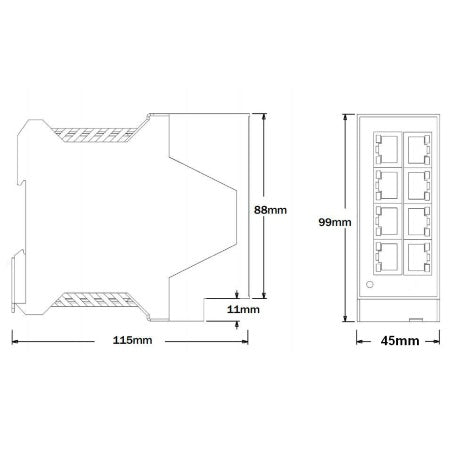

| Weight & dimensions | |
| Width | 1.77" (45 mm) |
| Depth | 4.53" (115 mm) |
| Height | 3.9" (99 mm) |
| Weight | 5.64 oz (160 g) |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 1.93" (49 mm) |
| Package depth | 6.3" (160 mm) |
| Package height | 5.31" (135 mm) |
| Package weight | 8.61 oz (244 g) |
| Packaging content | |
| Quick start guide | Yes |
