SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9
Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX700HG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.
This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.
The SMX700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with free downloadable PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX700HG in this type of application will void the battery warranty.
Tripp Lite

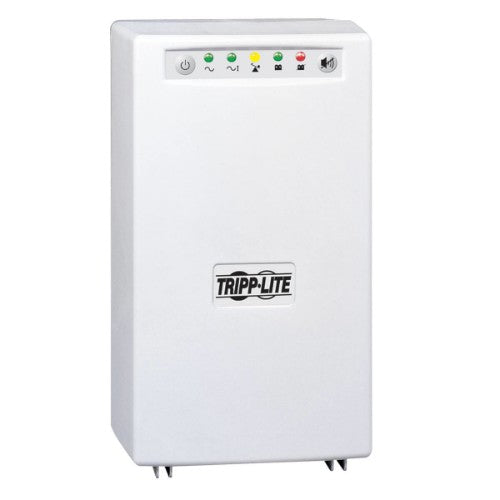

Tripp Lite SMX700HG uninterruptible power supply (UPS) 0.7 kVA 450 W 6 AC outlet(s)
Part number:
SMX700HG
Sale price
$863.30
Regular price
$1,464.02
Save
$600.72
41%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports a half load up to 36 minutes; full load up to 14.5 minutes
- Six IEC320 C13 hospital-grade outlets and IEC320 C14 hospital-grade plug
- Leakage current less than 100 microamps
- Approved for use within the Patient Care Vicinity
- Approved to EN60601-1-2:2015, 4th Edition
- Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
- 340 joule surge suppression rating protects connected equipment
- Alarm mute/alarm quiet control is ideal for use around patients
Description
The SMX700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 700VA/450W capacity provides up to 36 minutes of runtime for a half load or 14.5 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX700HG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.

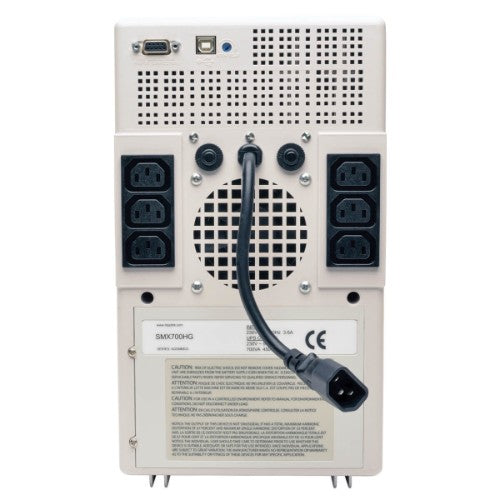

This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.
The SMX700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with free downloadable PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.
This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX700HG in this type of application will void the battery warranty.
Specifications
| Power | |
|---|---|
| Output power | 450 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 340 J |
| Maximum current | 3.6 A |
| Output power capacity | 0.7 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 72" (1.83 m) |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Performance | |
| Response time | 5 ms |
| LED indicators | Yes |
| EMI/RFI noise filtering | Yes |
| Audible alarm(s) | Yes |
| Features | |
| Country of origin | China |
| Response time | 5 ms |
| Output power | 450 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 340 J |
| Maximum current | 3.6 A |
| EMI/RFI noise filtering | Yes |
| Audible alarm(s) | Yes |
| Output power capacity | 0.7 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery recharge time | 3.6 h |
| Typical backup time at half load | 36 min |
| Typical backup time at full load | 14.5 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Design | |
| Country of origin | China |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | White |
| Cooling type | Active |
| Certification | CE/IEC 60601-1, FCC B |
| Cable length | 72" (1.83 m) |
| Housing material | Polyvinyl chloride (PVC) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Packaging data | |
| Package dimensions (WxDxH) | 12.2 x 13.4 x 18.5" (310 x 340 x 470 mm) |
| Package width | 12.2" (309.9 mm) |
| Package depth | 13.4" (339.9 mm) |
| Package height | 18.5" (469.9 mm) |
| Package weight | 45.4 lbs (20.6 kg) |
| Certificates | |
| Certification | CE/IEC 60601-1, FCC B |
| Compliance certificates | RoHS |
| Cooling | |
| Cooling type | Active |
| Weight & dimensions | |
| Package width | 12.2" (309.9 mm) |
| Package depth | 13.4" (339.9 mm) |
| Package height | 18.5" (469.9 mm) |
| Weight | 42.1 lbs (19.1 kg) |
| Width | 7.5" (190.5 mm) |
| Package weight | 45.4 lbs (20.6 kg) |
| Height | 12.8" (325 mm) |
| Depth | 9.02" (229 mm) |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Package dimensions (WxDxH) | 12.2 x 13.4 x 18.5" (310 x 340 x 470 mm) |
| Nominal input voltage | 230 V |
