SmartRack 18U UPS-Depth Wall-Mount Half-Height Rack Enclosure, Clear Acrylic Window, Hinged Back
The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW18USDPG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
Tripp Lite

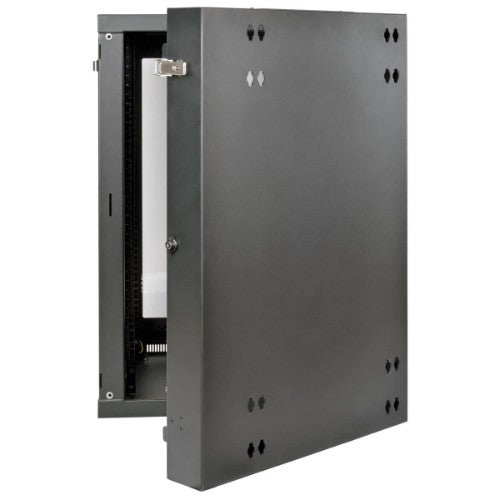

Tripp Lite SRW18USDPG rack cabinet 18U Wall mounted rack Black
Part number:
SRW18USDPG
Sale price
$898.58
Regular price
$1,740.13
Save
$841.55
48%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Maximum load capacity of 250 lbs (113.4 kgs)
- Swings away from wall on hinge for easy back-door access
- Front door includes shatter-resistant clear acrylic window
- Locking steel cabinet vented at sides, top and bottom
- Secures 18U of 19 in. rack equipment up to 24.5 in. deep
Description
The SRW18USDPG SmartRack® 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds (113.4 kilograms).The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW18USDPG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 40.9" (1040.1 mm) |
| Package width | 27.9" (709.9 mm) |
| Package height | 29.9" (760 mm) |
| Package weight | 132.1 lbs (59.9 kg) |
| Width | 23.5" (596.9 mm) |
| Depth | 26" (659.9 mm) |
| Height | 35.6" (904.5 mm) |
| Weight | 99.6 lbs (45.2 kg) |
| Maximum weight capacity | 249.1 lbs (113 kg) |
| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Features | |
| Key lock | Yes |
| Rack capacity | 18U |
| International Protection (IP) code | IP20 |
| Type | Wall mounted rack |
| Maximum weight capacity | 249.1 lbs (113 kg) |
| Product colour | Black |
| Certification | EIA-310-D, IEC 60297-3-100, RoHS |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package depth | 40.9" (1040.1 mm) |
| Package width | 27.9" (709.9 mm) |
| Package height | 29.9" (760 mm) |
| Package weight | 132.1 lbs (59.9 kg) |
| Technical details | |
| Package width | 27.9" (709.9 mm) |
| Package height | 29.9" (760 mm) |
| Type | Wall mounted rack |
| Harmonized System (HS) code | 8517.79.0000 |
| Rack capacity | 18U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | EIA-310-D, IEC 60297-3-100, RoHS |
| Logistics data | |
| Master (outer) case width | 27.9" (709.9 mm) |
| Master (outer) case length | 40.9" (1040.1 mm) |
| Master (outer) case height | 29.9" (760 mm) |
| Master (outer) case gross weight | 132.1 lbs (59.9 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
