Fast Ethernet and POE over coax converter
- Veracity's unique SafeView ™ display provides an instant and easy-to-understand confirmation of network and power status.
- HIGHWIRE Powerstar lets you install IP cameras easily, quickly & reliably with no disruption and new cable costs, with up to 25W POE power over coax to the camera without using local power supplies.
- Veracity's unique SafeView display provides instant, easy-to-understand confirmation of network and power status right across the cable, with no need to access remote equipment to check connections.
VERACITY

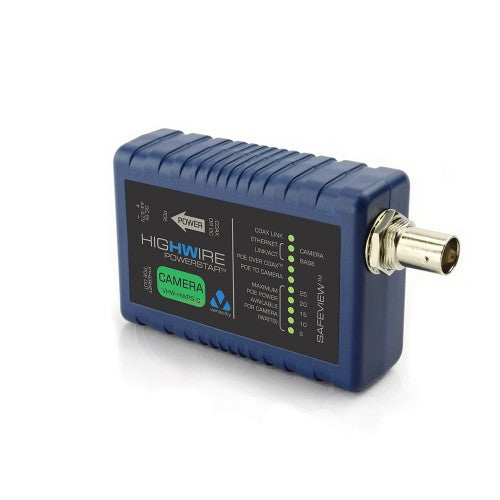

Veracity HIGHWIRE Powerstar Camera network media converter Internal 100 Mbit/s Blue
Part number:
VHW-HWPS-C
Sale price
$203.71
Regular price
$248.00
Save
$44.29
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description

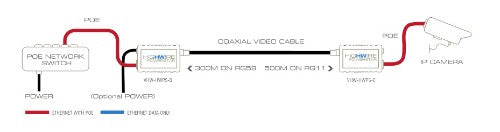

HIGHWIRE Powerstar Ethernet & PoE Over Coax Camera Unit. HIGHWIRE PowerStar lets you install IP cameras easily, quickly, and reliably, without the disruption and expense of installing new cable. Support for your camera is assured, thanks to HIGHWIRE's unique full-rate Ethernet over Coax technology.- Veracity's unique SafeView ™ display provides an instant and easy-to-understand confirmation of network and power status.
- HIGHWIRE Powerstar lets you install IP cameras easily, quickly & reliably with no disruption and new cable costs, with up to 25W POE power over coax to the camera without using local power supplies.
- Veracity's unique SafeView display provides instant, easy-to-understand confirmation of network and power status right across the cable, with no need to access remote equipment to check connections.
Specifications
| Technical details | |
|---|---|
| Maximum transfer distance | 19685" (500 m) |
| Internal | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Performance | |
| Auto-negotiation | Yes |
| Maximum transfer distance | 19685" (500 m) |
| Network | |
| Auto-negotiation | Yes |
| Converter input interface | 100Base-T |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 100 Mbit/s |
| Duplex system | Full |
| Maximum data transfer rate | 100 Mbit/s |
| Ports & interfaces | |
| BNC ports quantity | 1 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Blue |
| Certification | FCC, CE, RoHS |
| Internal | Yes |
| Power | |
| Power consumption (max) | 25 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 1.5 W |
| Colour | |
| Product colour | Blue |
| Weight & dimensions | |
| Width | 2.13" (54 mm) |
| Depth | 4.06" (103 mm) |
| Weight | 1.76 oz (50 g) |
| Height | 0.984" (25 mm) |
| Package depth | 5.12" (130 mm) |
| Package width | 2.95" (75 mm) |
| Package height | 1.26" (32 mm) |
| Package weight | 2.47 oz (70 g) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 0 - 85% |
| Packaging data | |
| Package depth | 5.12" (130 mm) |
| Package width | 2.95" (75 mm) |
| Package height | 1.26" (32 mm) |
| Package weight | 2.47 oz (70 g) |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
