SATA 2.5", 6 Gb, 129 x 128 x 9.5 mm

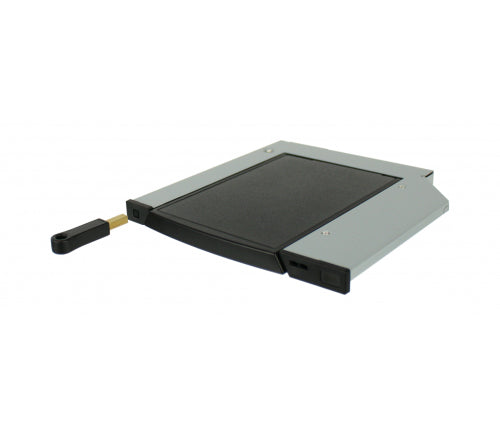

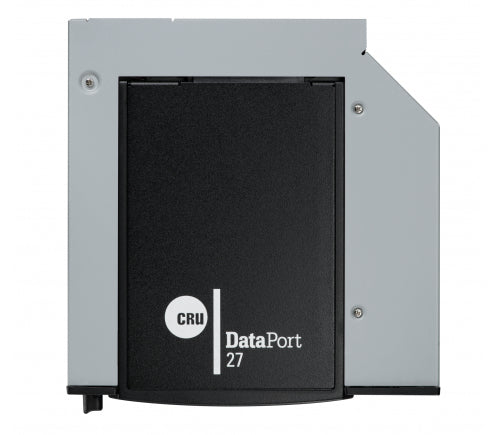

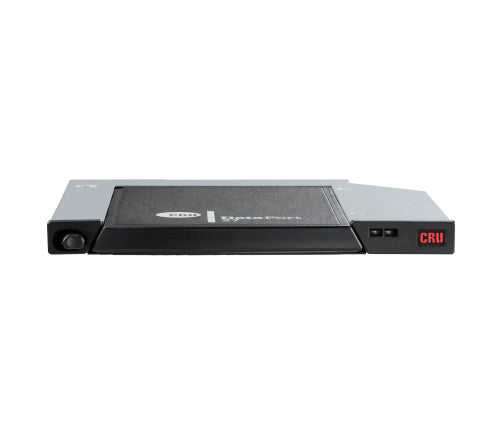

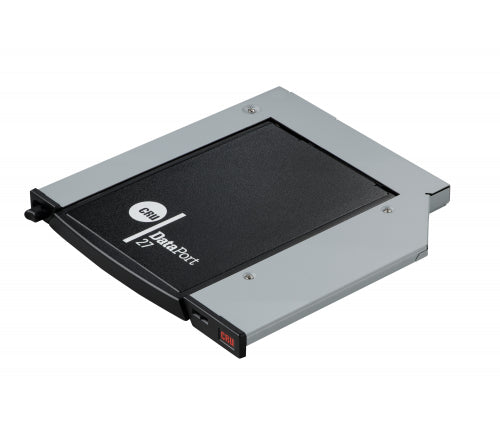

These carriers and frames receive any capacity 2.5-inch low profile (7mm height) SATA hard drives and solid-state drives (SSD). The frame mounts in 9.5mm slimline optical bays found in many laptops and small form factor desktop computers. The DataPort 27L, a variant frame with a physical lock and key for extra security, is also available.
The DP27 enables fast drive swapping for additional storage. The frame mounts meet standard SFF-8552 (rev 1.4) specifications for 9.5mm slimline optical drives.
A fully enclosed metal hard-drive carrier provides rugged protection. These enclosures are engineered and warrantied for heavy use. The drive receiving interface is rated for up to 50,000 drive insertions.
The DP27 operates at speeds up to 6 Gbps using 6 Gbps hard drives and host controllers.
The DP27 frame includes a latch to secure the carrier in place during operation, while the DP27L uses a key to secure the carrier.
- Additional features:
- Power and drive activity LEDs
Free lifetime phone tech support
The DP27 removable drive carriers and frames will provide you with reliable performance while protecting your data.
CRU
CRU DP27 interface cards/adapter Internal SATA
Part number:
8270-6409-8500
Sale price
$122.13
Regular price
$130.00
Save
$7.87
6%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Government agencies, educational institutions, users of big data, computer manufacturers and others that need robust, high-quality, removable drive enclosures to store, transport, and protect their sensitive data rely on the CRU DataPort® 27.These carriers and frames receive any capacity 2.5-inch low profile (7mm height) SATA hard drives and solid-state drives (SSD). The frame mounts in 9.5mm slimline optical bays found in many laptops and small form factor desktop computers. The DataPort 27L, a variant frame with a physical lock and key for extra security, is also available.
The DP27 enables fast drive swapping for additional storage. The frame mounts meet standard SFF-8552 (rev 1.4) specifications for 9.5mm slimline optical drives.
A fully enclosed metal hard-drive carrier provides rugged protection. These enclosures are engineered and warrantied for heavy use. The drive receiving interface is rated for up to 50,000 drive insertions.
The DP27 operates at speeds up to 6 Gbps using 6 Gbps hard drives and host controllers.
The DP27 frame includes a latch to secure the carrier in place during operation, while the DP27L uses a key to secure the carrier.
- Additional features:
- Power and drive activity LEDs
Free lifetime phone tech support
The DP27 removable drive carriers and frames will provide you with reliable performance while protecting your data.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | SATA |
| SATA revision | 3.0 |
| Host interface | SATA |
| Technical details | |
| Bandwidth | 6 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Product colour | Black |
| Bandwidth | 6 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Black |
| Design | |
| Easy to install | Yes |
| Internal | Yes |
| Product colour | Black |
| Features | |
| Bandwidth | 6 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 5.08" (129 mm) |
| Depth | 5.04" (128 mm) |
| Height | 0.374" (9.5 mm) |
| Weight | 8.11 oz (230 g) |
| Package weight | 12.7 oz (360 g) |
| Packaging data | |
| Package weight | 12.7 oz (360 g) |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
