Mini ITX, 276 x 260 x 319mm, 3.2 kg, SPCC
The new Suppressor F1 is an ITX based chassis with a 200mm fan in the brushed front panel. Smart interchangeable side panels allow users to flip it accordingly to showcase either for superior liquid cooling or superb airflow, which allows you to make your own personal setup, having a really powerful mini system.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Chamber Design
Suppressor F1 has divided into two main chambers: the upper chamber is made for cooling performance and efficiency, and the lower chamber is made for PSU and cable management. With the aid of the removable 2.5”/3.5” drive device racks, users can enjoy to the freedom of gain the maximum interior space for advance cooling performance or liquid system build.
Outstanding Ventilation
With a promising cooling ability, Suppressor F1 has various mounting points to supports all types of cooling systems that includes DIY/AIO liquid cooling systems and air cooling units. A large 200mm fan is preinstalled in the front, along with two optional 80mm turbo fans at the rear, guarantee to hold up any type of gaming system.
Interchangeable Side Panel
Symmetrical panels allow users to build the system with personality. Play around the panels accordingly for either the best viewing presentation or cooling performance. Two magnetic side filters are removable, users can freely make adjustment. Also, a removable PSU dust filter and adjustable shockproof rubbers is built with the bottom panel of the chassis to prolong the PSU usage.
Handy I/O Ports
Design with convenience and cleanness in mind, Suppressor F1 has built in dual USB 3.0 and HD audio connectors together with the Power and Reset Button on the side of front panel, which not only keep the panel clean and simple, it also grants a direct and easy access for external devices.
Great Expansion in Compact Size
Suppressor F1 is designed with high-end gaming system compatibility, gamers can easily install up to 4 data storage devices with the modular drive racks, a dual expansion slot VGA with the length up to 255mm, a tower CPU cooler with height up to 140mm, together with a high wattage PSU of length up to 180mm, and still offers a 80mm cable management space.
Thermaltake

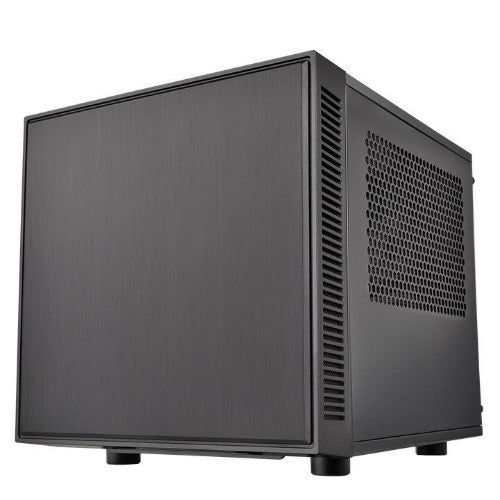

Thermaltake Suppressor F1 Black
Part number:
CA-1E6-00S1WN-00
$92.03
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Thermaltake Suppressor F1 Mini ITX ChassisThe new Suppressor F1 is an ITX based chassis with a 200mm fan in the brushed front panel. Smart interchangeable side panels allow users to flip it accordingly to showcase either for superior liquid cooling or superb airflow, which allows you to make your own personal setup, having a really powerful mini system.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Chamber Design
Suppressor F1 has divided into two main chambers: the upper chamber is made for cooling performance and efficiency, and the lower chamber is made for PSU and cable management. With the aid of the removable 2.5”/3.5” drive device racks, users can enjoy to the freedom of gain the maximum interior space for advance cooling performance or liquid system build.
Outstanding Ventilation
With a promising cooling ability, Suppressor F1 has various mounting points to supports all types of cooling systems that includes DIY/AIO liquid cooling systems and air cooling units. A large 200mm fan is preinstalled in the front, along with two optional 80mm turbo fans at the rear, guarantee to hold up any type of gaming system.
Interchangeable Side Panel
Symmetrical panels allow users to build the system with personality. Play around the panels accordingly for either the best viewing presentation or cooling performance. Two magnetic side filters are removable, users can freely make adjustment. Also, a removable PSU dust filter and adjustable shockproof rubbers is built with the bottom panel of the chassis to prolong the PSU usage.
Handy I/O Ports
Design with convenience and cleanness in mind, Suppressor F1 has built in dual USB 3.0 and HD audio connectors together with the Power and Reset Button on the side of front panel, which not only keep the panel clean and simple, it also grants a direct and easy access for external devices.
Great Expansion in Compact Size
Suppressor F1 is designed with high-end gaming system compatibility, gamers can easily install up to 4 data storage devices with the modular drive racks, a dual expansion slot VGA with the length up to 255mm, a tower CPU cooler with height up to 140mm, together with a high wattage PSU of length up to 180mm, and still offers a 80mm cable management space.
Specifications
| Technical details | |
|---|---|
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Supported motherboard form factors | Mini-ITX |
| Supported HDD sizes | 2.5,3.5" |
| Suitable for | Gaming |
| Side window | Yes |
| Reset button | Yes |
| Built-in speaker(s) | No |
| Product colour | Black |
| Number of expansion slots | 2 |
| Maximum CPU cooler height | 5.51" (14 cm) |
| Maximum graphics card length | 11.2" (28.5 cm) |
| Maximum PSU length | 7.87" (20 cm) |
| Type | PC |
| Material | |
| Material | SPCC |
| Indication | |
| LED indicators | Yes |
| Ergonomics | |
| Reset button | Yes |
| LED indicators | Yes |
| Cable management | Yes |
| Design | |
| Anti-dust filter | Yes |
| Material | SPCC |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Supported motherboard form factors | Mini-ITX |
| Suitable for | Gaming |
| Side window | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Cable management | Yes |
| Built-in speaker(s) | No |
| Product colour | Black |
| Number of expansion slots | 2 |
| Maximum CPU cooler height | 5.51" (14 cm) |
| Maximum graphics card length | 11.2" (28.5 cm) |
| Maximum PSU length | 7.87" (20 cm) |
| Type | PC |
| Power supply | |
| Power supply included | No |
| Power supply location | Bottom |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Front radiator sizes supported | 120,140 mm |
| Front fans installed | 1x 200 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120,140,200 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 80 mm |
| Fan speed | 800 |
| Liquid cooling capability | Yes |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
| Width | 10.2" (260 mm) |
| Depth | 12.6" (319 mm) |
| Height | 10.9" (276 mm) |
| Weight | 7.05 lbs (3.2 kg) |
