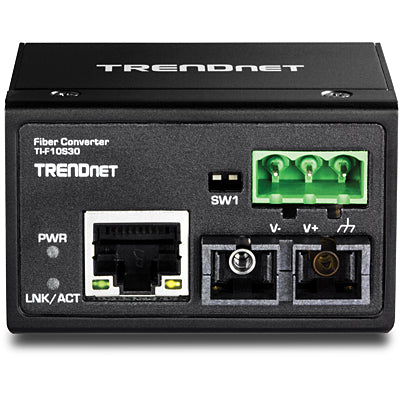

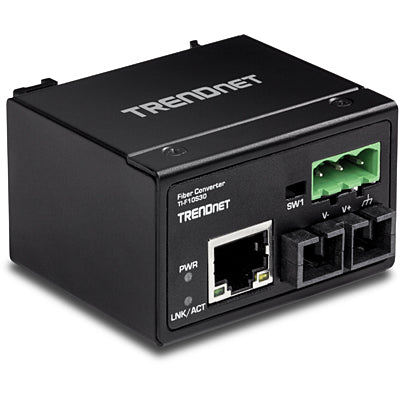

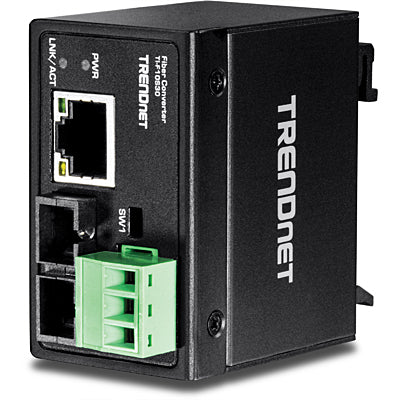

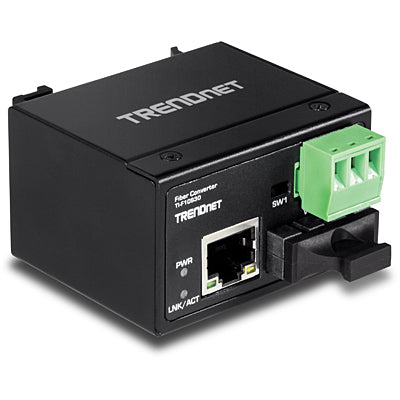

Hardened Industrial 100Base-FX Single-Mode SC Fiber Converter (30 km, 18.6 mi.)
Trendnet
Trendnet TI-F10S30 network media converter 200 Mbit/s 1310 nm Single-mode Black
Part number:
TI-F10S30
Sale price
$99.68
Regular price
$99.99
Save
$0.31
0%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Hardened IP40 rated compact housing
- 100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 mi.)
- SC-type fiber port
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Overload current protection

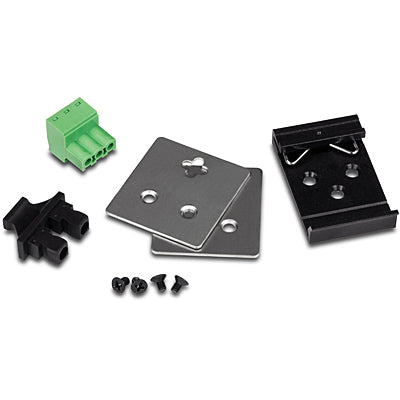

- Includes DIN-rail and wall mounts
- NDAA / TAA compliant
Description
TRENDnet’s TI-F10S30 is a compact IP40 rated 100Base-FX fiber converter with hardened components rated for extreme industrial environments. It accommodates long distance networking with 100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 miles). Both DIN-rail and wall mount hardware is included. Power supply sold separately: model TI-M6024.Specifications
| Network | |
|---|---|
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Fiber ethernet cabling technology | 100BASE-FX |
| Converter input interface | 100Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 100Base-FX |
| Maximum data transfer rate | 200 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1181102.4" (30000 m) |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Link budget | 7 dB |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Features | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Power consumption (max) | 1.92 W |
| Input voltage | 12 - 60 V |
| Weight & dimensions | |
| Width | 2.36" (60 mm) |
| Depth | 1.97" (50 mm) |
| Weight | 3.17 oz (90 g) |
| Height | 1.38" (35 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Packaging content | |
| Quick installation guide | Yes |
| Technical details | |
| International Protection (IP) code | IP40 |
| Housing material | Metal |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1181102.4" (30000 m) |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Link budget | 7 dB |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Design | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Certification | FCC, CE |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Link budget | 7 dB |
